FlySky GT2G transmitter + FS-A3 receiver set
Excellent FlySky brand apparatus designed for cars and boats. Most often chosen by beginners but also meets the expectations of more experienced modelers. Great value for money.
Included:
GT2G apparatus
A3 receiver
Set of cables
Manufacturer
FlySky
Model
FS-GT2G-220 + FS-A3
Number of channels
2
Destination
Car / Boat
Frequency
2.4GHz
Modulation
GFSK
Power supply
4x AA batteries
Bandwidth
500KHz
FlySky GT2B transmitter + GR3E receiver set
FlySky GT2B is a 3 channel apparatus designed for cars and boats. It is a simple apparatus for those who want to get started with RC cars or RC boats.
Included:
FS-GT2B transmitter
FS-GR3F receiver
battery to power the transmitter
wiring
spare grip for the handle
Manufacturer
FlySky
Model
FS-GT2B + FS-GR3E
Number of channels
3
Destination
car / boat
Frequency
2.4GHz
2.4gHz system
AFHDS
Low voltage alarm
YES(below 3.5V)
DSC port
YES(USB; PPM output)
Charging socket
YES
Voltage
3.7V(800mAh)
Weight
262g
Dimensions
156x94x223mm
Color
black
Dual power and mobility

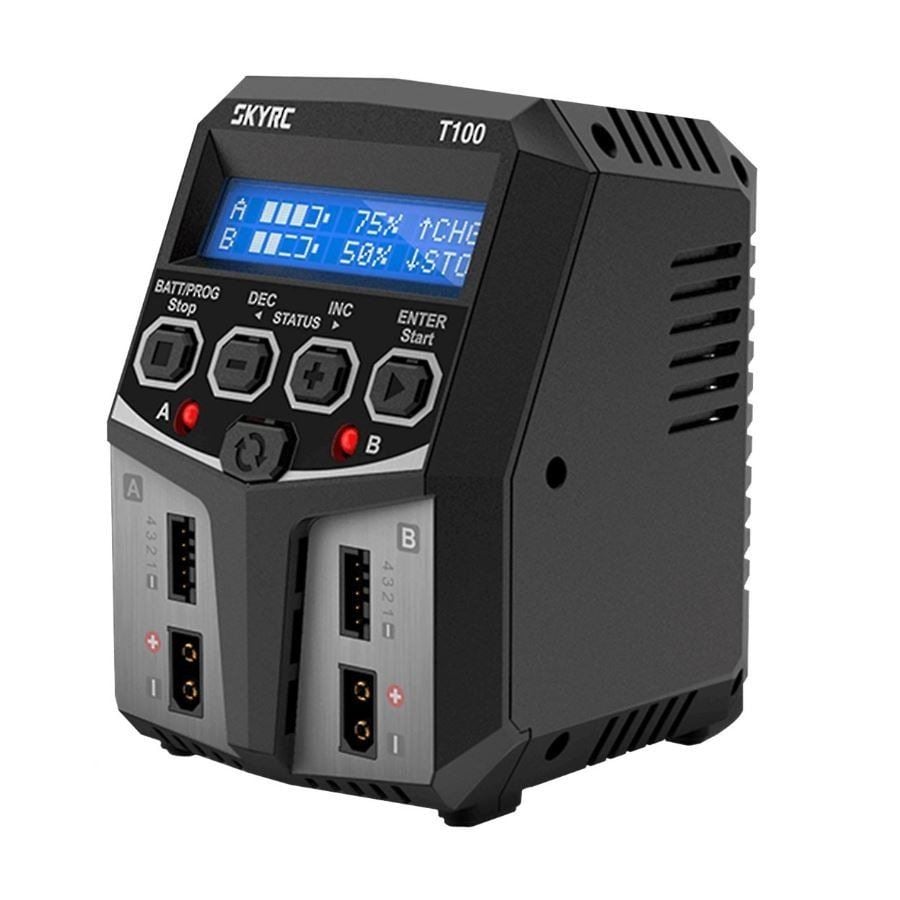

SkyRC T100 charger is a two-channel charger that is able to charge or discharge all the most common types of batteries. Thoughtful design allows for seamless connection to the balancer and XT60 plug ports. The charger is small, but has as much as 100 watts of power, which allows you to charge the battery with 5 amps. The charger also has AGM and cold charging modes to charge lead-acid and AGM batteries at lower temperatures.
Two charging circuits
The T100 allows you to connect 2 batteries and then intelligently and automatically recharge them to their maximum capacity. Batteries can have different specifications and be of a completely different type
XT60 universal plug
Today's most popular XT60 plug is built into the T100 charger, making it easy to connect and recharge commonly used batteries. XT60 prevents reverse polarity problems and provides a very stable connection.
Higher voltage reading accuracy
The charger software has been highly optimized, allowing the battery voltage to be displayed up to 3 decimal numbers. With the T100, you will be able to measure the voltage with extreme precision during the charging process.
AGM and cold charging modes
AGM batteries are stronger and lighter than typical lead-acid batteries. Although both types of batteries have the same key elements, their chemical structure makes them very different. For this reason, the T100 introduces an AGM battery charging mode. Never charge AGM batteries with an ordinary charger in Pb mode. In addition, the T100 introduces a COLD mode optimized for low temperatures.
Versatility with AGM and cold modes
AGM batteries are easy to maintain, very stable and lighter than other lead-acid batteries. Although they have the same structure, the difference in chemical components translates into large differences in performance. Do not charge AGM batteries with a normal charger in Pb mode. Cold mode allows you to charge the battery at low temperature.
Included
Power supply
Charger T200
Power supply cable

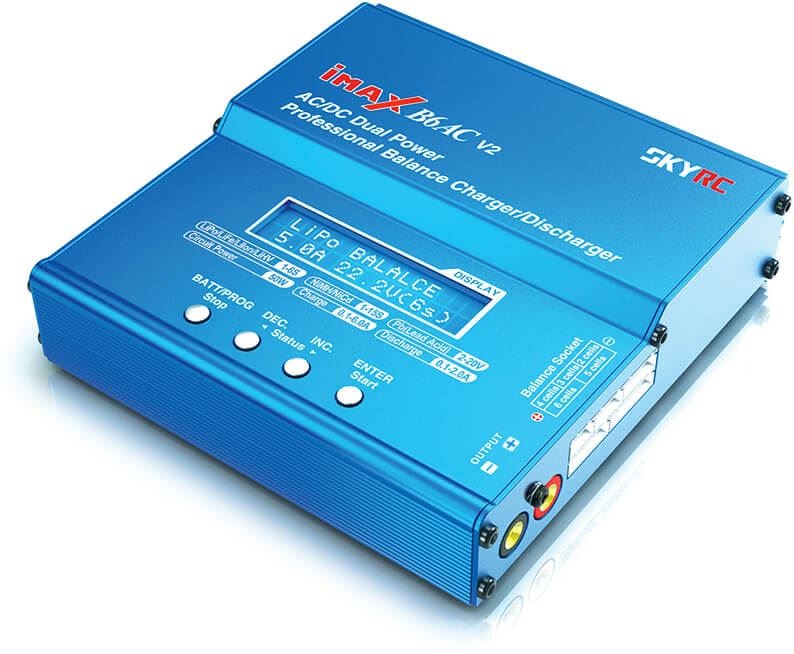

Tulajdonságok:Sok lehetőség.A SkyRC B6AC V2 a jól ismert iMax B6AC V1 töltő továbbfejlesztett változata. A B6AC V1 verzióhoz képest stabilabb és pontosabb, valamint számos új funkcióval rendelkezik. A felhasználók maguk állíthatják be a töltő feszültségét, és PC-vel vezérelhetik azt. A töltő rendelkezik áramkorlátozó érzékelővel, beépített ellenállásmérővel és lítium-ion akkumulátor mérővel, hőmérséklet- és töltési időkorlátozással, ami sokkal biztonságosabbá teszi a töltőt, mint a V1. A SkyRC B6AC + V2 egy magas színvonalú mikroprocesszoros töltő/töltő, amely minden típusú akkumulátorhoz (LiPo, LiFE, Lilon) alkalmas. A maximális töltőáram 6A és a maximális teljesítmény 50A. Tömeg: 632 g Bemeneti feszültség: AC100-240 V /DC 11-18 V Max. Töltés 50 W MAxx. Kisütés 5 W Töltési áramtartomány: 0,1-6 A Kisütési áramtartomány: 0,1-2 A Akkumulátor feszültség: PB 2-20 V LiPo/LiFe/Lilon/LiHV A töltött cellák száma: 1-6 S NiMH/NiCd töltött cellák száma: 1-15 S

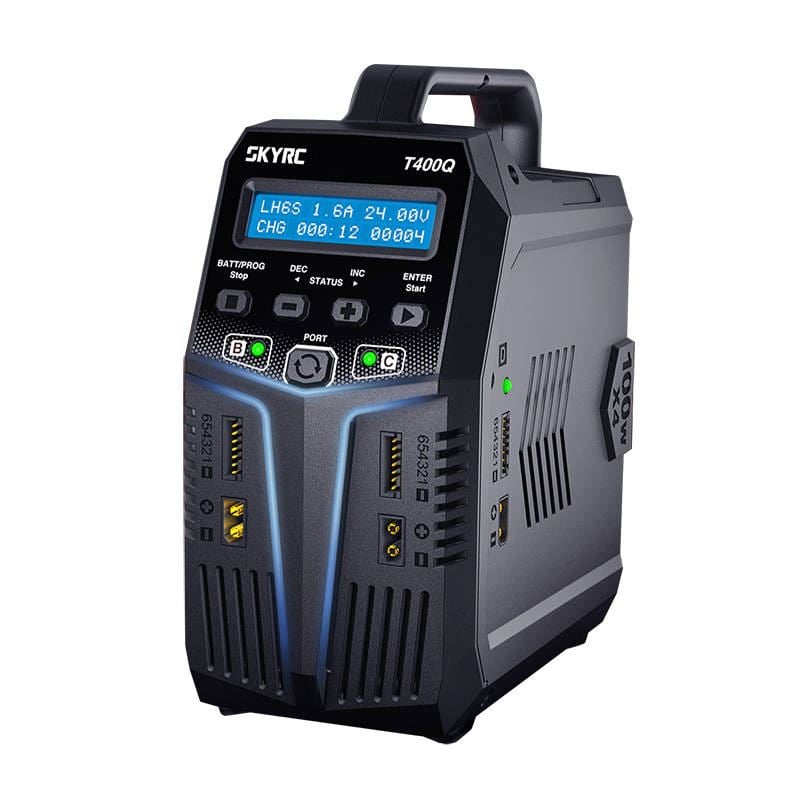

SkyRC T400Q charger
SkyRC T400Q four-channel charger is a must-have gadget for any modeling person! The charger guarantees convenient charging of multiple devices simultaneously. It is equipped with 4 ports that allow discharging and charging with a maximum power of up to 100 watts and a charging current of 12 A. It automatically adjusts the charging intensity of devices and has a practical low-temperature charging mode. It is extremely easy to use, and its ergonomic design allows you to transport it anywhere without any problems!
High performance
The T400Q has 4 independent charging ports that you can easily use simultaneously! It delivers up to 100 watts of power and 12 amps per circuit, so you can charge your receiver battery or 6S lithium batteries in no time. In addition, thanks to its gold-plated spring connectors, it is able to handle a maximum current of 60A for a longer period of time without exceeding 80°C.
Wide compatibility
The SkyRc charger is suitable for a variety of batteries. Its charging algorithm is compatible with many popular battery types available on the market - LiPo, Lilon, LiHV, NiMH, NiCd and Pb. In addition, the built-in XT60 connector effectively prevents reverse polarity, ensuring reliable operation.
Ready for winter
The charger is equipped with AGM and Pb charging modes, which will easily energize a discharged battery (Pb mode is not available for AGM batteries). In addition, it has a special low-temperature charging function, so you don't have to worry about problems with your car or airplane model's battery in cold weather!
Easy to use
The charger is extremely easy to use! Thanks to its intuitive buttons and LCD display, anyone - even inexperienced users - can easily handle it. Using the INC or DEC keys, you can easily adjust the values. On the other hand, all you need to do to start charging is press the Enter key. After just one use, you'll have battery handling at your fingertips! In addition, the device allows you to adjust the terminal voltage (for advanced users only).
Ergonomic design
Minimalist design combined with functionality. The compact design of the charger makes it not take up much space. In addition, the device is equipped with a practical handle for convenient transportation.
Safe use
The T400Q is equipped with a practical AUTO mode, which automatically adjusts the current during charging or discharging, which can lead to explosions through improper use. In the case of lithium batteries, this effectively prevents overcharging. What's more, the device can automatically disconnect the circuit, as well as alert you if it detects a malfunction. You can easily configure all the available settings yourself.
Manufacturer
SkyRC
Model
T400Q
Dimensions
186 x 103 x 209 mm
Weight
1610g
Housing material
Plastics
Display type
2 x 16 LCD
Display backlighting
Blue
Charging power
100W x 4
Discharge power
10W
DC input voltage
11-18V
AC input voltage
100-240V 50/60HZ
Battery types
LiPo/LiHV.LiFe/Lilon: 1-6S, NiMH/NiCd: 1-15S, Pb: 2-20V
Battery capacity range
NiMH/NiCd: 100-50000 mAh LiPo/LiFe/LiHV: 100-50000 mAh Pb: 100-50000 mAh
Charging voltage
NiMH/NiCd: Delta peak detection, LiPo: 4.18-4.25 V/S, LiFe: 3.58-3.7 V/S, Lilon: 4.08-4.2 V/S, LiHV: 4.25-4.35 V/S, Pb: 1.8-2.0 V/S
Discharge cut-off voltage
NiMH/NiCd: 0.1-1.1 V/S, LiPo: 3.0-3.3 V/S, LiFe: 2.6-2.0 V/S, Lilon: 2.9-3.2 V/S, LiHV: 3.1-3.4 V/S
Charging voltage range
0.1-26.1 V/cell
Charging current
0.1A - 12.0A
Discharge current
0.1A - 12.0A
Balance current
500mA
Safety time
1 ~ 720 min & shutdown (default: 120 min)
Operating temperature
0°C-40°C
Operating humidity
0%-75%
Storage temperature
-10°C-70°C
Storage Humidity
0%-75%

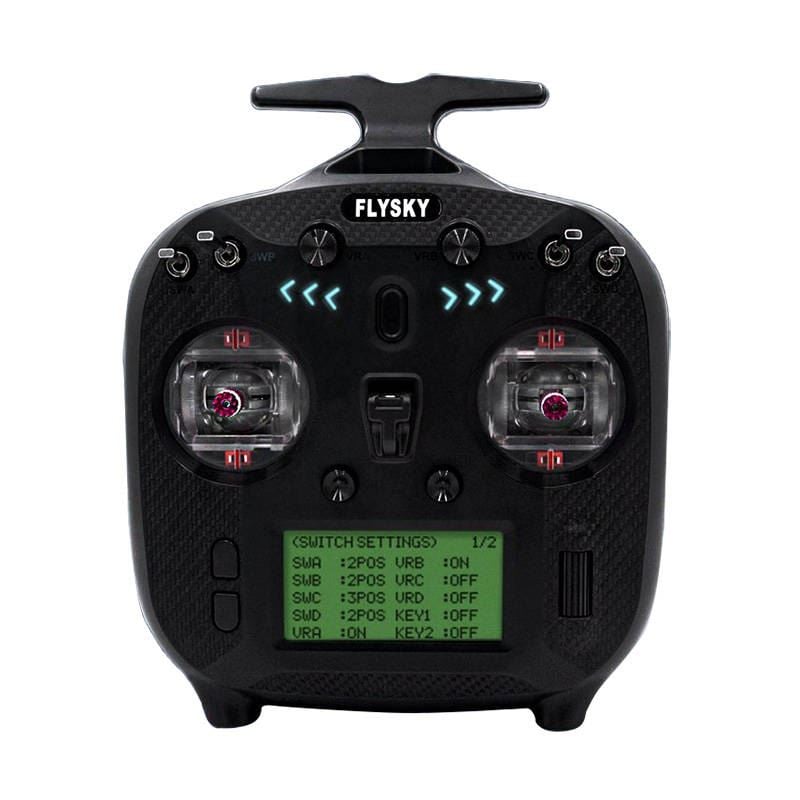

FlySky FS-ST8 + SR8 transmitter + receiver set
FlySky FS-ST8 + SR8 is equipped with 8-10 channels, and with its omni-directional antenna it prevents interference. It allows you to customize the operation of the control sticks and buttons, and the easy-to-read display will provide the most important information on the operation of the device. Moreover, it is suitable for remote-controlled models of gliders, helicopters, cars, boats, robots, etc.
User-friendly
To use the full potential of FS-ST8 + SR8, you can purchase FlySky C-series sensors, FS-CGPS01 GPS module or CEV04 for channel expansion - then you can use all of them. It is also possible to mount a phone holder (included), for even more convenient use. What's more, the product supports FlySky Assistant 3.0, which will allow you to perform device updates and store/copy files.
Thoughtful design
The device uses altitude, speed, temperature and voltage sensors. It will also provide RSSI reverse transmission, BVD voltage and other telemetry information. What's more, the FS-ST8 + SR8 features an ergonomic design, so you can use it comfortably. Meanwhile, the transparent elements make the RGB backlighting more visible - and you can also personalize it.
Efficient power supply
The FS-ST8 + SR8 can be powered by AA/2S batteries or 4 x 1300 mAh NiMH rechargeable batteries that stand out for their low power consumption and run for up to 10 h on a single charge. Enjoy the possibilities that FlySky offers. Attention: neither batteries AA nor NiMH batteries are not included in the package.
Included
transmitter
receiver
BVD battery voltage detection line
JR RF adapter
phone holder
mounting elements for throttle adjustment
mounting elements for throttle with reverse sensor
mounting elements for FS-FAR01 2.4G external antenna
user manual
Manufacturer
FlySky
Model
FS-ST8 + SR8
Color
black
Number of channels
8-10
Wireless frequency
2.4 GHz ISM
Transmission power
<20 dBm
Wireless protocol
ANT
Range
>1000m (AIR)
Channel resolution
4096
Rechargeable battery
1.5AA * 4 or 2S (JST)
Low voltage alarm
<4.2 V/7.2 V
Antenna type
Dual antennas
Display
LCD 128 x 64
Data port
DSC, Type C
Temperature range
-10 ℃ - + 60 ℃
Humidity range
20% -95%
Online update
Yes
Dimensions
176 x 210.9 x 82.5 mm
Weight
420 g
Certifications
CE, FCC ID: N4ZST800
GensAce 5100mAh 22.2V 80C 6S1P EC5 battery.
Do not discharge below 3.0V per cell. Charge only with a microprocessor charger in lithium-polymer pack charging mode. Do not short-circuit the poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.
Voltage
22,2 V
Capacity
5100 mAh
Number of cells
6
Discharge current
80C
Length
149 mm
Width
50 mm
Height
52 mm
Weight
760 g
Manufacturer code
GEA6S510080E5

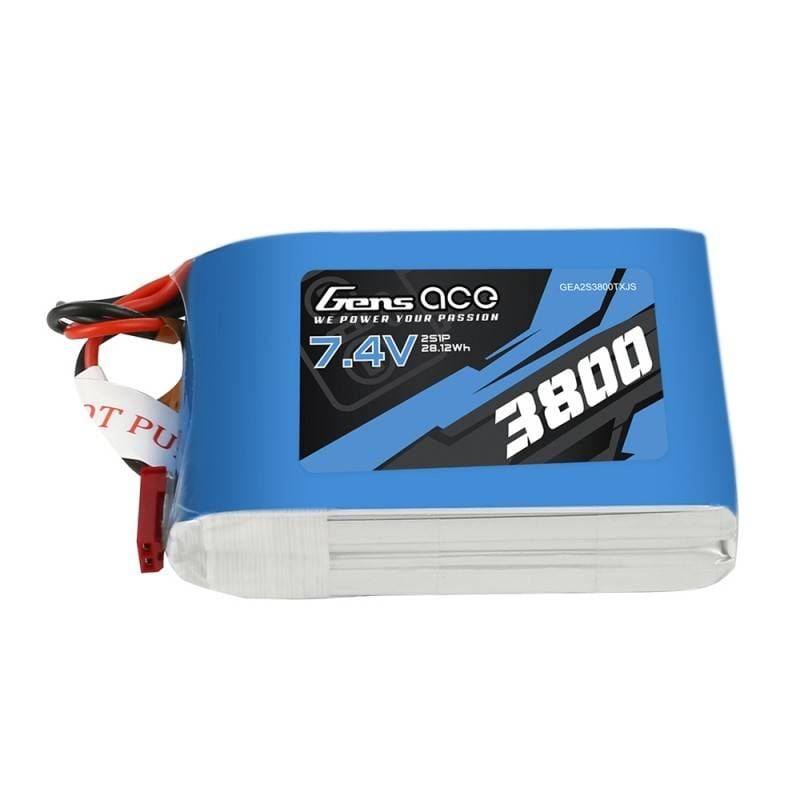

Gens Ace battery
Batteries of unrivalled quality. They offer exceptional power whether you are using smaller drones for recreational use or heavy rigs for commercial use. Batteries often look similar from the outside - their true strength, however, lies within.
Safety instructions
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium polymer pack charging mode. Do not short-circuit poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers
Voltage
7.4V
Capacity
3800 mAh
Number of cells
2
Connector type
JST-SYP
Balancer type
JST-XHR
Discharge current
1C
Length
70 mm
Width
52 mm
Height
19 mm
Weight
140 g
FlySky FS-i6S + FS-iA6B
The FS-i6s transmitter and FS-iA6B receiver provide a 10-channel digital proportional RC system. It provides excellent protection against interference while maintaining low power consumption and high reliability.
Low-voltage warning function
Each transmitter and receiver has its own unique ID
3 inch touchscreen interface created for control convenience
Uses 2.4 GHz AFHDS 2A digital, proportional and computerised system
Free software updates available online to always use the current system
Switchable control mode for comfortable transmitter stick control
Low energy consumption
The system has been constructed using highly sensitive components with low power consumption. It retains the high sensitivity of the receiver while consuming approximately one-tenth the power of a standard FM system, significantly extending battery life.
Two-way communication
The FS-i6S features telemetry, capable of sending as well as receiving data which means that each transmitter can receive data such as temperature, altitude and information from many other types of sensors, servo calibration and i-BUS operation.
Multi-channel frequency
The frequency bandwidth varies between 2.4055 GHz and 2.475 GHz, divided into 140 channels. Each transmitter jumps between 16 channels to reduce interference from other transmitters.
Omni-directional antenna
The high quality omni-directional antenna reduces, interference while using less power and maintaining a reliable connection.
Unique ID recognition system
Each transmitter and receiver has its own unique identifier. Once connected, the devices will only communicate with each other, making it impossible for other systems to accidentally connect or interfere with the system.
Model
FS-i6S + iA6B
Dimensions
179 x 81 x 161 mm
Number of channels
6
Stick sensitivity
4096
Antenna length
26 x 2 mm (dual antenna)
Weight
411 g
Model type
Quadcopter
Bandwidth
500 KHz
Power input
4.2V - 6.0V
Certifications
CE, FCC ID : N4ZFLYSKYI6S

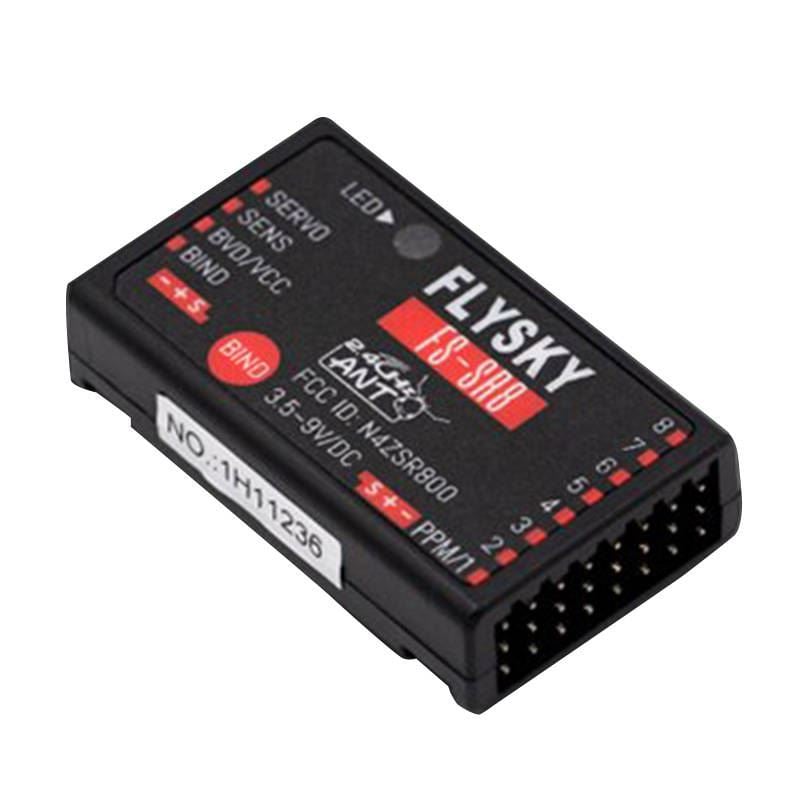

FlySky FS-SR8 receiver
The FS-SR8 is an 8-channel dual antenna receiver that operates at a frequency of 2.4 GHz. It stands out with a range of up to 1,000 meters on the surface. Its dimensions are only 44.8 x 26.6 x 11.3 mm, and it weighs only 10 g. It is designed for FS-ST8, FS-4GP, FS-G7P transmitters and uses the stable ANT protocol. It supports RSSI power indicator and PWM, PPM, i.BUS and s.BUS output signals.
Manufacturer
FlySky
Model
FS-SR8
Number of PWM channels
8
Wireless frequency
2.4GHz
Protocol
ANT
Range
up to 1000 m (on the surface)
Antenna
Dual
Input power
3.5-8.4V
RSSI
Supported
Output signal
PWM, PPM, i.BUS, s.BUS
BVD function
Yes, 0-70V
Operating temperature
From -10℃ to 60℃
Humidity range
20% to 95%
Online update
Yes
Dimensions:
44.8 x 26.6 x 11.3 mm
Weight
10 g
Certifications
CE, FCC ID:2A2UNSR800
FlySky FS-i A6B receiver
The receiver is compatible with many FlySky transmitters, including the FS-i4, FS-i6, FS-i8 and FS-i10.
Manufacturer
FlySky
Model
FS-iA6B
PWM channel
6
Wireless frequency
2.4GHz
Wireless protocol
AFHDS 2A
Range
500 ~ 1500m (in air)
Antenna type
Dual copper antenna (150mm * 2)
Power supply
4.0-8.4V
RSSI
Supported
Data port
PWM / PPM / i.bus / s.bus
Temperature range
-10 ℃ - + 60 ℃
Humidity range
20% -95%
Online update
Yes
Dimensions
47 * 26.2 * 15 mm
Weight
10g
Certifications
CE, RCM, FCC ID: N4ZFLYSKYIA10
FlySky i4X + A6
The FS-i4X is a 4-channel control unit (expandable to 10 channels) from the renowned FlySky company. The device operates at frequencies from 2.405 to 2.475GHz. The apparatus has anti-interference capabilities and uses the V-MIX control system, compatible with many models. The unit is designed for fixed-wing aircraft, gliders and helicopters. The FS-i4X uses low-power electronic components and a sensitive receiver. RF modulation uses an intermittent signal, reducing power consumption even further. The AFHDS2A system has an auto-identification function that can switch between one-way and two-way communication modes automatically according to customer needs.
Transmitter
Dimensions
174 mm x 89 mm x 190 mm
Weight
323 g
Antenna length
26 mm
Number of channels
4 (4-10)
Power supply
4 AA batteries (not supplied)
Operating frequency
2.4 - 2.48 GHz
Modulation
GFSK
Application
Aircraft, gliders, helicopters, drones
Screen
None, LED lights
Ports
PS2, PPM
System
AFHDS 2A / AFHDS
Receiver
Number of channels
6
Range
Up to 1 km
Modulation
GFSK
Dimensions
45 mm x 23 mm x 9 mm
Weight
13 g
Telemetry
It is
Antenna length
26 mm
FlySky FS-i6X + A6B
Nadajnik z wyborem liczby kanałów od 6 do 10 (domyślnie 6) przeznaczony dla zdalnie sterowanych modeli latających - szybowców, samolotów, helikopterów itd. Nadajnik posiada czytelny wyświetlacz LCD z podświetleniem. Urządzenie pracuje w systemie AFHDS / AFHDS2 na częstotliwości 2,4 GHz. Cyfrowe trymer i łatwe programowanie wyróżniają ten nadajnik na tle innych modeli, a komfortu dodaje także przełączniki i pokrętła zmiany trybu lotu, ustawienia klap itp. Co więcej, nadajnik można rozszerzać za pomocą opcjonalnych odbiorników telemetrycznych i szerokiego zakresu czujników. Odbiornik posiada funkcje przeciwzakłóceniowe i wysoką czułość pracy. Zestaw oferuje zasięg nawet do 1 kilometra.
Wymiary
174 mm x 190 mm x 89 mm
Waga
392 g
Długość anteny
26 mm (dwie anteny)
Ilość kanałów
6-10
Zasilanie
4 baterie AA
Częstotliwość pracy
2,4 - 2,48 GHz
Modulacja
GFSK
Zastosowanie
Samoloty, szybowce, helikoptery, drony
Ekran
LCD 128x64 z białym podświetleniem
Podstawowe programowalne funkcje
Dual rates, pozycja neutralna serwa, krzywa gazu, czułość gyro, odwrócenie kanału, utrzymanie obrotów silnika itd.
SkyRC T1000 Maestro charger
SkyRC T1000 Maestro is a new, incredibly powerful RC model charger that stands out with up to 450W (AC) or even 1000W (DC). It uses an advanced Arm Cortex-M4 core and is equipped with a color display that will provide you with the most important information regarding its operation. It allows you to use 2 ports at the same time, and you will have no problem transporting it. Special Charger Master software is also available, which provides even more capabilities.
Reliable performance
Push the limits with the SkyRC T1000 charger and get more options for your next RC race. The product supports advanced DSP technology and has a state-of-the-art Arm Cortex-M4 core, which also uses a coprocessor (FPU). As a result, it can deliver incredible speed, performance and reliability! Bet on proven solutions and choose a charger that works in almost every situation.
Even faster charging
Enjoy even faster charging. The charger is equipped with 2 ports that will allow you to charge 2 batteries simultaneously in a short time. You can also choose between AC and DC input. In AC mode, the charging power reaches 450W, and in DC mode it is up to 1000W! This will charge your batteries up to 9 times faster (in AC mode) or up to 20 times faster (in DC mode) than with standard chargers.
Intelligent power distribution
When you use only one port, the charger will direct all its power to that port and provide up to 20A. When you use both ports, the charging current parameters will be dynamically and intelligently divided between each of them. So you can enjoy optimal performance in most situations! What's more, when one port finishes working, the other will start charging at full capacity. When using 2 outlets simultaneously, the total current is up to 35A.
Digital power supply
The T1000 will not only perform well as a charger, but can also act as a digital power supply. All it takes is a few clicks on its menu! The product offers a voltage of 5-27V with 0.1V increments and an adjustable current of 1-15A. It is also equipped with short circuit, overload and reverse polarity protection. Thus, it provides unparalleled performance and safety!
Additional capabilities
Do you care about additional capabilities? Try the separately available devices that work with the charger! For example, the BD350 discharger provides a maximum of 40A. In combination with the T1000 Maestro, it also allows you to check the condition of the battery using Charger Master software. There is also a charging hub that can handle up to 150W and offers up to 4 ports (3x USB-C, 1x USB-A).
User-friendly interface
The charger features an easy-to-read 2.8″ TN LCD screen with a clear ColorX interface. It provides a resolution of 240x320 and displays the image in 262,144 colors. Also noteworthy is the 250:1 contrast ratio. Responsive Web2.0 menus and specially designed icons make operating the device much simpler and more pleasant! What's more, the interface offers 4 languages to choose from - English, Dutch, Chinese and Japanese.
Will prove itself while traveling
Take the charger to your next RC event and don't sacrifice the ability to quickly charge your batteries while you're away. The T1000 Maestro is compatible with 100-240V, which means you can use it in many countries around the world without any problems. The product is also equipped with a special handle, which makes it much easier to carry.
Try out the Charger Master software
Get convenient access to the most important information - just use the Charger Master software. Simply connect the T1000 charger to your computer with a USB-C cable! Once you do, for example, you can download OTA updates and sync the latest software version to the cloud in real time. You can also view a graph of charging/discharging data.
In the box
T1000 charger
AC power cable
User manual
Brand
SkyRC
Model
T1000
Input voltage
AC: 100-240V (50 / 60Hz);DC: 10-30V;
Input current
35A max.
Charging power
AC: 450W max;DC: 1000W max;
Discharge power
Main port: 10W;Balance port: 37W max;External discharge: 350W max;
Charging intensity
LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb: 0.1-20.0A;Parallel charging: 20.0-35.0A;
Discharge intensity
LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb: 0.1-2.0A;External Discharge: 0.1-40.0A;**The BD350 discharger is required for this function, which must be purchased separately.
Balancer intensity
LiPo / LiFe / LiIon / LiHV: 1.5A max.
Battery type
LiPo / LiFe / LiIon / LiHV: 1-6S;NiMH / NiCd: 4-15S;Pb: 3S / 6S / 12S;
DC output voltage
5-27V
DC output current
1.0-15.0A
Dimensions
190.3x153.5x100mm
Weight
1370g
FlySky FS-GR3E receiver
The FS-GR3E 3-channel receiver operates in the AFHDS system at 2.4 GHz. The receiver is compatible with FlySky GT2, GT2B, GT3, GT3B, GT3C, T6, CT6B, GR3E and TH9X transmitters. The receiver is designed for RC trucks, buggies, and boats.
Manufacturer
FlySky
Model
FS-GR3E
Dimensions
35 mm x 22 mm x 12 mm
Weight
5 g
Antenna length
26 mm
Number of channels
3
Sensitivity
1024
Receiver sensitivity
-105 dBm
Operating frequency
2.4 - 2.48 GHz
Modulation
GFSK
Coding type
PCM

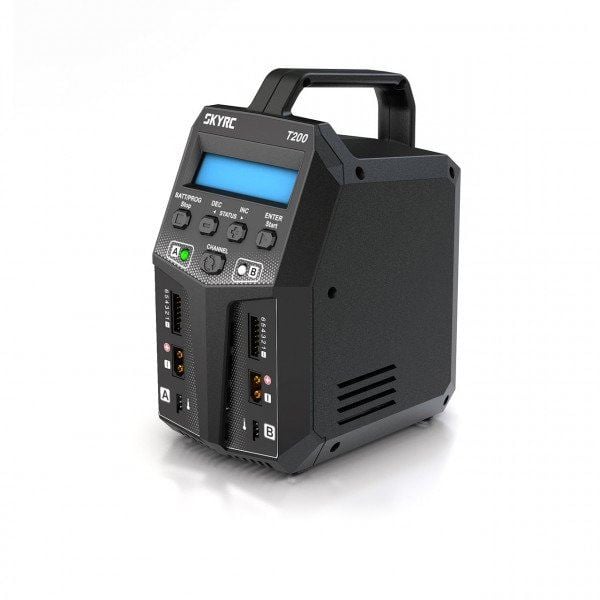

Double the power and mobility
The SkyRC T200 charger has the most compact design, taking up minimal space, the tick of a pair of batteries. The charger delivers 100 watts of integrated power through each charging circuit. Behind the tasteful casing is enough power to charge two batteries simultaneously at up to 12 amps per channel, so you'll be pumping life into a wide range of batteries in no time, from receiver packs to 6S lithium polymer or NiMH and NiCD 15S batteries. What's more, the charger provides all the programmability you expect from a modern high-end charger.
Multiply efficiency
Both charging channels can be programmed and operated individually. The T200 allows two batteries to be charged intelligently, automatically and simultaneously to their maximum capacity. What's more, the cells being charged do not have to have the same configuration or be of the same type. Feel completely free to choose which packs to charge.
Compatibility and universal XT60 plug
The charger has a charging algorithm that allows it to work with the most common battery types - LiPo, LiIon, LiHV, LiFe, NiMH, NiCD and Pb. The XT60 interface prevents reverse polarity and ensures a very stable connection.
Optimised software
The SkyRC T200 has a so-called AUTO function, which automatically sets the current during charging and discharging. For lithium batteries in particular, the function helps prevent overcharging, which can lead to an explosion due to the user. The function automatically shuts down the circuit and informs the user when an abnormality is detected. All programmes on the T200 are controlled by a two-way signal to ensure maximum safety and minimise problems. All settings can be configured by the user.
Intuitive operation
A panel of five buttons and a brightly illuminated LCD screen make operation of the unit effortless, even for inexperienced users. The charging programmes work in a similar way to other SkyRC chargers, but even if this is your first contact with a programmable charger, you will easily move between parameters by using the up and down arrows to set values and then clicking enter to confirm.
Versatility with AGM and cold modes
AGM batteries are easy to maintain, are very stable and lighter than other lead-acid batteries. Although they have the same structure, the difference in chemical components translates into a big difference in performance. AGM batteries should not be charged with a normal charger in Pb mode. Cold mode allows the battery to be charged at a low temperature.
Adjustable terminal voltage
The SkyRC T200 allows users to change the terminal voltage (for advanced users only).
Special handle
The charger is equipped with a special handle. Its compact design at less than 1 kg makes it the most convenient charger to carry.
Included
T200 charger
Power cable
Power supply
DC 11-18 V, AC 100-240 V
Charging power
100 W x 2
Discharge power
10 W
Battery type
LiPo/LiIon/LiFe/LiHV 1-6S, NiMH/NiCd 1-15S, Pb 2-20V
Battery capacity
LiPo/LiIon/LiFe/LiHV 100-50000 mAh, NiMH / NiCd 100-50000 mAh, Pb 100-50000 mAh
Charging current
0,1 - 12 A
Discharge current
0,1 - 2 A
Charging voltage
LiPo: 4.18-4.25V/cell, LiIon: 4.08-4.2V/cell, LiFe: 3.58-3.7V/cell LiHV: 4.25-4.5V/cell, NiMH/NiCD - Delta-Peak detection, Pb Normal: 2.4V/cell, Pb AGM: 2.45V, Pb Cold: 2.45V
Discharge voltage
LiPo: 3.0-3.3V/cell, LiIon: 2.9-3.2V/cell, LiFe: 2.6-2.9V/cellLiHV: 3.1-3.4V/cell, NiMH/NiCD - 0.1-1.1V/cell
Balancer
2-6S
Housing material
Plastic
Dimensions
178 x 135 x 96 mm
Weight
850 g
Timer
1-120 minutes
Operating temperature
0℃-40℃
Display
2x16 LCD with backlight
External ports
XH 1-6S balancer socket, temperature sensor port, battery port, DC input
SkyRC eFuel 30A/540W power supply
The 540W power supply supports 12-18V output and has built-in PFC which is an important aspect in all power supplies. The eFuel is ideal for high-voltage and three-port chargers, as well as other devices. The 100-240-volt power range allows for universal use without the need for DC port settings. High power and functional design allows you to take the power supply on the go and into the field.
Functionality
The dual DC port supplies up to 30 amps. With this design, the power supply gives you multiple power options. Also located on the right side of the power supply are two USB ports for powering external devices (such as a smartphone MP3 player or tablet). On the left side, in turn, is the main power switch.
Simple operation
The eFuel power supply model has a convenient knob for adjusting the voltage from 12 to 18 volts. In turn, the easy-to-read LCD screen displays the current output voltage and current, which makes it much easier to operate the power supply. The universal AC 100 - 240 V power supply makes the power supply usable worldwide without the need for power adapters.
PFC input
Active PFC input means less interference with AC power supply. It is the circuit responsible for changing/correcting the power factor value, that is, changing the phase shift angle between current and voltage. The phase shift between current and voltage causes reactive power to be emitted.
Included:
Power adapter
Power cable
Manufacturer
SkyRC
Model
SK-200013
Voltage
100-240 V/AC
Frequency
AC 50-60Hz
Output voltage
30 A ± 1A
Short-circuit protection
≤31 A 500 MS
Input
Fuse 10 A Fuse
LCD screen
±0.3V
Efficiency
89%
Temperature protection
<65℃
Weight
1.62 kg
Dimensions
218 x 139 x 59.5 mm
New function

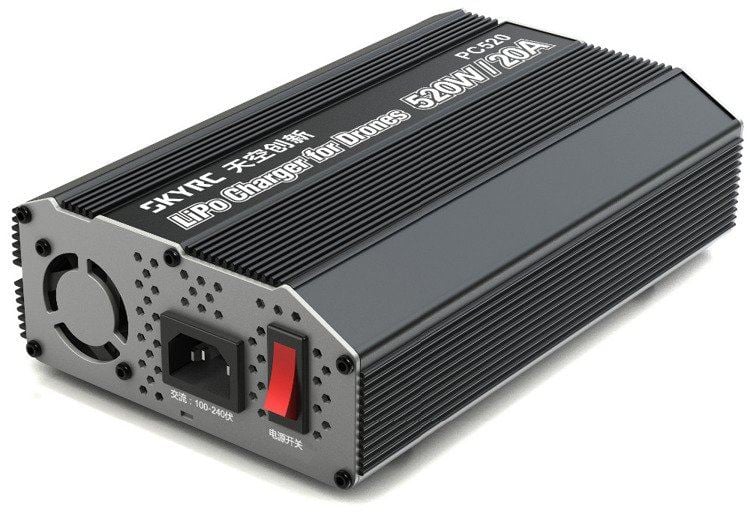

SkyRC PC520 is a charger designed specifically for charging drones with a built-in power supply. The device is able to charge 6S LiPo batteries with a built-in balancer and use battery storage mode. During operation, the charge/discharge data is displayed in real time on the LED display, which also informs about charging errors. Maximum charging safety is ensured by the safety features, including protection against short circuiting and incorrect polarity. The maximum PC520 has a maximum charge power of 520 W and a maximum current of 20 A.
Included:
SkyRC Charger PC520
Power Cable
XT90 charging cables with banana
Weight
1.6 kg
AC input voltage
100-240 V
Power
520 W
Charging current range
1.0 - 20 A
LiPo number of loaded cells
6 S
Dimensions
200 x 132 x 59 mm
Product description
Voltage - 14,8 V Capacity - 3700 mAh Number of cells - 4Connector type - XT60Type of balancer - JST-XHRDischarge current - 45CLength - 136 mm Width - 41 mm Heigth - 27,9 mm Weigth - 372 g
Safety manual
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium-polymer pack charging mode.Do not short-circuit the poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.
Tattu brand batteries
Specifically for UAV use, the Tattu brand has designed new batteries of unrivalled quality. They offer exceptional power whether you're using smaller drones for recreational use or heavy rigs for computing applications. Batteries often look similar from the outside - their real strength, however, lies inside. The cells in Tattu batteries are developed specifically for UAV requirements.
Safety instructions
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium polymer pack charging mode.Do not short-circuit poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers
Voltage
3,7 V
Capacity
500 mAh
Number of cells
1
Connector type
JST-PHR
Balancer plug type
JST-XH
Discharge current (continuous)
95C
Discharge current (peak)
190C
Length
60 mm
Width
19 mm
Height
9 mm
Weight
15 g
Product description

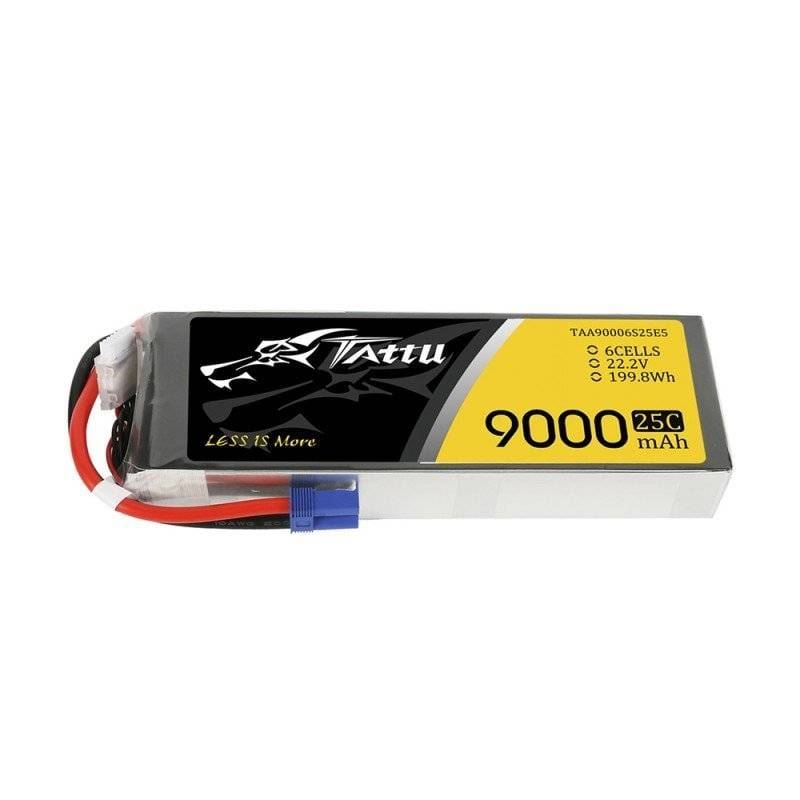

Voltage - 22,2 V Capacity - 9000 mAh Number of cells - 6Connector type - EC5Type of balancer - JST-XHRDischarge current - 25CLength - 208 mm Width - 73 mm Heigth - 37 mm Weigth - 1110 g
Safety manual
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium-polymer pack charging mode.Do not short-circuit the poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.
Tattu brand batteries
Specifically for UAV use, the Tattu brand has designed new batteries of unrivalled quality. They offer exceptional power whether you're using smaller drones for recreational use or heavy rigs for computing applications. Batteries often look similar from the outside - their real strength, however, lies inside. The cells in Tattu batteries are developed specifically for UAV requirements.
Safety instructions
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium-polymer pack charging mode.Do not short-circuit poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.

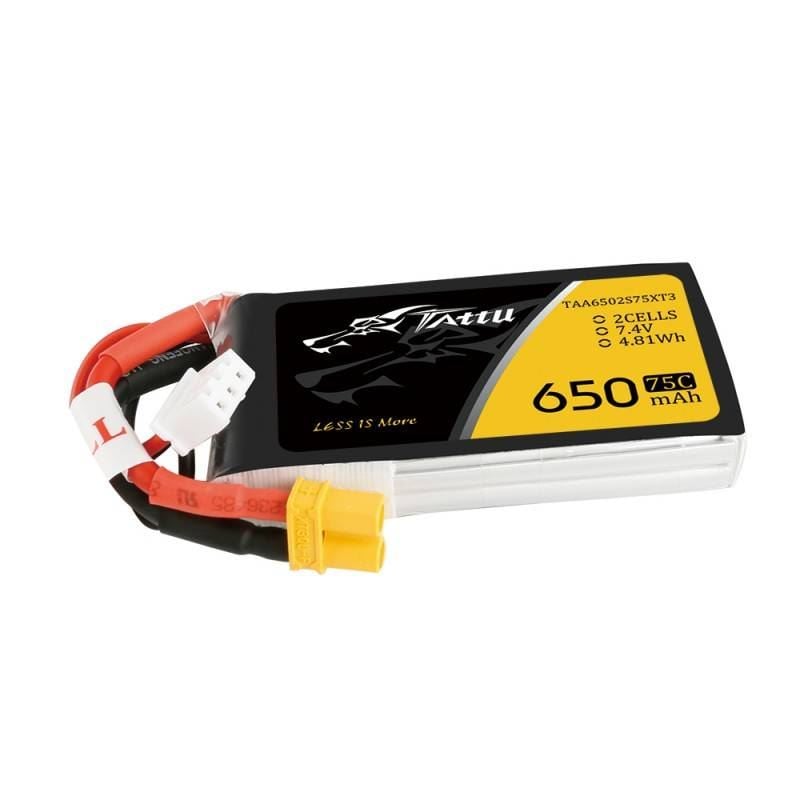

Voltage
7,4 V
Capacity
650 mAh
Number of cells
2
Connector type
XT30
Balancer plug type
JST-XH
Discharge current (continuous)
75C
Length
58 mm
Width
31 mm
Height
12 mm
Weight
43 g

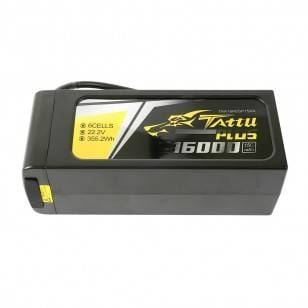

Product description
Voltage - 22,2 V Capacity - 16000 mAh Number of cells - 6 Connector type - AS150+XT150
Discharge current - 15C
Type of balancer - JST-XHR
Length - 202 mm Width - 88 mm Heigth - 69 mm Weigth - 2063 g
Product code - TAA16K6SP15AX
Safety manual
Do not discharge below 3.0V per cell. Charge only with a microprocessor-based charger in lithium-polymer pack charging mode.Do not short-circuit the poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.

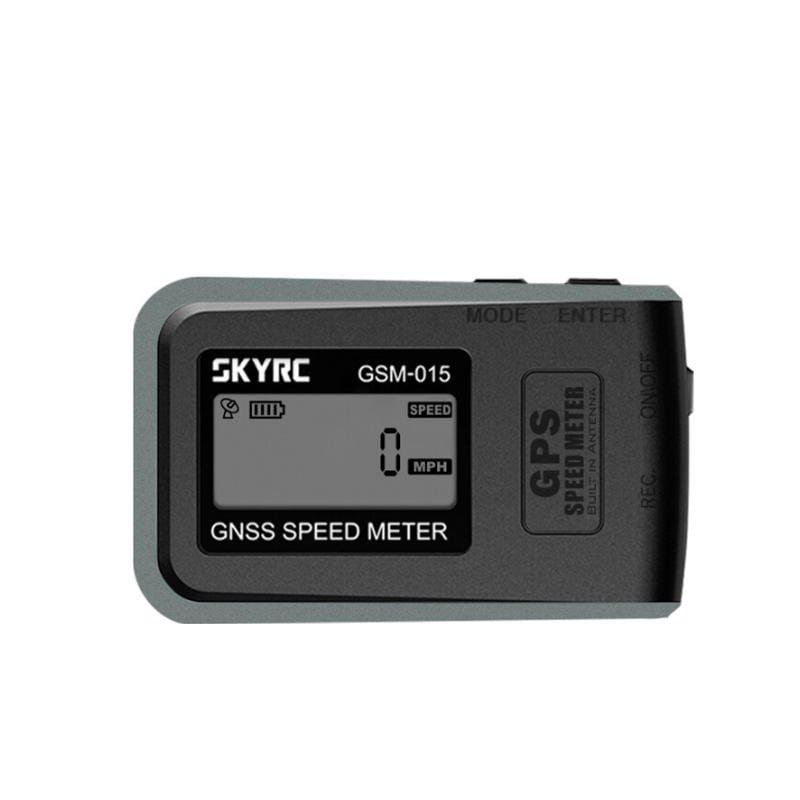

SkyRC Speed Meter GSM-015
With the GSM-015 from SkyRC, you can easily check the speed at which your car is going, check how high your drone or plane is flying, as well as save your route and export to Google Earth. The GSM-015 is more than just a speedometer - it is an extremely advanced and precise device enclosed in an ultra-compact housing and weighing just 45 grams. The high-precision GPS chip performs rapid position determination and provides real-time speed and ceiling information. The gadget is designed for racing model cars, drones, aircraft (attachment with Velcro straps is recommended), cycling, driving and long journeys. The user can easily read data such as speed, absolute altitude, longitude and latitude. The device records the highest speed and altitude, which can be checked immediately after the ride. Using the GPSlogger programme (downloadable here), the user can transfer their position data to a computer and export to Google Earth/Map Bing.
Simultaneous GPS and GLONASS reception
The DGSM-015 supports GPS and GLONASS simultaneously, giving it access to a much larger number of satellites orbiting the earth. This allows much higher positioning accuracy by tracking the positions of two sets of satellites, instead of just GPS. The built-in 1M memory allows up to 18 hours of route storage at an update rate of 1 Hz. The position update frequency is adjustable from 1 Hz to 10 Hz.
Features
Speedometer with memory for top speed
Peak memory
Storage of GPS co-ordinates of the route
Built-in 1M flash memory (enough for 2 hours of route recording)
Time stamp for each saved point
Built-in 200 mAh LiPo rechargeable battery (operating time - 150 minutes)
Supports Google Eath / Bing maps
Software upgradeable
GNSS
GPS, GLONASS
Frequency
L1, 1575.42 MHz
Update frequency
1.023 MHz
Antenna
Built-in
Satellite reception sensitivity
-167 dBm
Operating temperature
0℃ to +50℃
Storage temperature
-10℃ to +70℃
Weight
45 g
Dimensions
65.7 x 39.6 x 20.8 mm
Operating humidity
5 - 90%
Max. length of recorded track
10 Hz - 1:48'22"; 5 Hz - 3:36'44"; 2 Hz - 9:1'52"; 1 Hz - 18:3'44"
25 940 Ft
Ez a weboldal sütiket használ a lehető legjobb élmény biztosítása érdekében. További információ...
