SECURITY
Network Security
SPI Firewall
Access Control
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal
WIRELESS
Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
1-2 Bedroom Houses (1-pack)
2-4 Bedroom Houses (2-pack)
3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
Dual-Band
Distribute devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
Working Modes
Router Mode
Access Point Mode
HARDWARE
Ethernet Ports
2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons
Reset Button
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
Management
Deco App
TEST DATA
WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
PHYSICAL
Dimensions (W×D×H)
4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm)
Package Contents

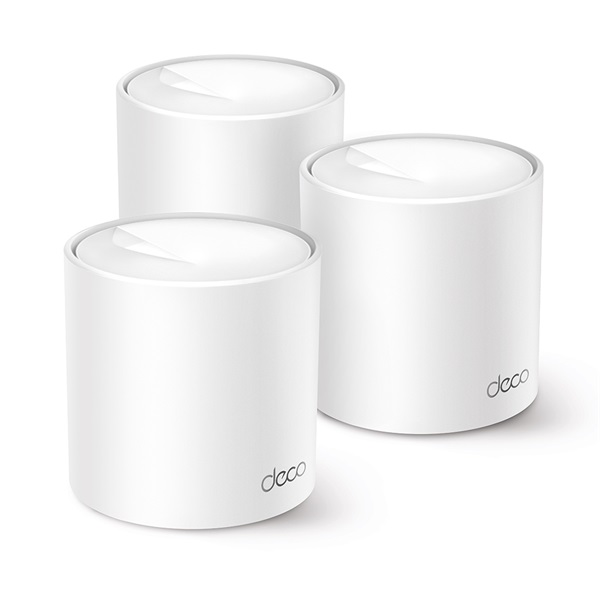

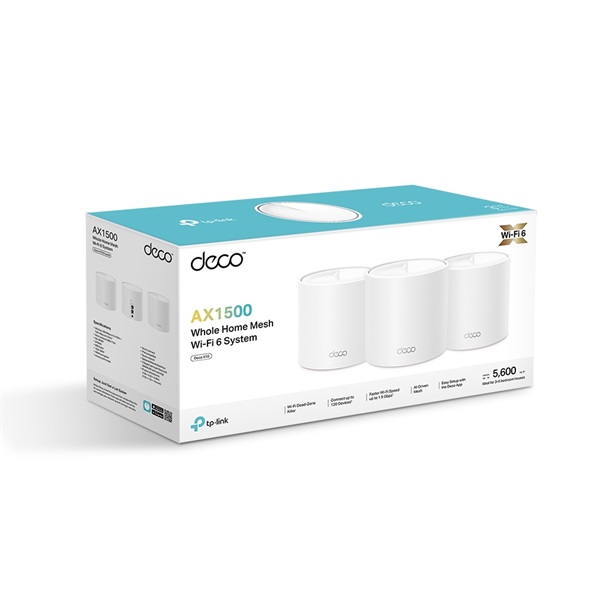

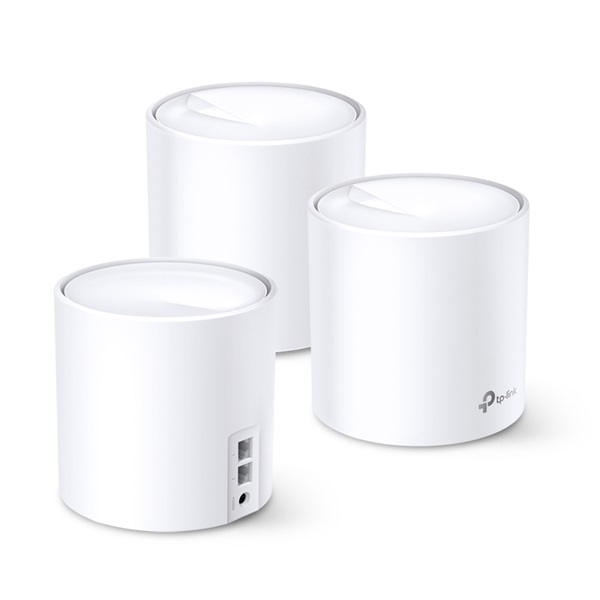

Deco X10 (3-pack)
3 Deco X10 Units
1 RJ45 Ethernet Cable
3 Power Adapters
Quick Installation Guide
Deco X10 (2-pack)
2 Deco X10 Units
1 RJ45 Ethernet Cable
2 Power Adapters
Quick Installation Guide
Deco X10 (1-pack)
1 Deco X10 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
OTHERS
System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
Certifications
CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

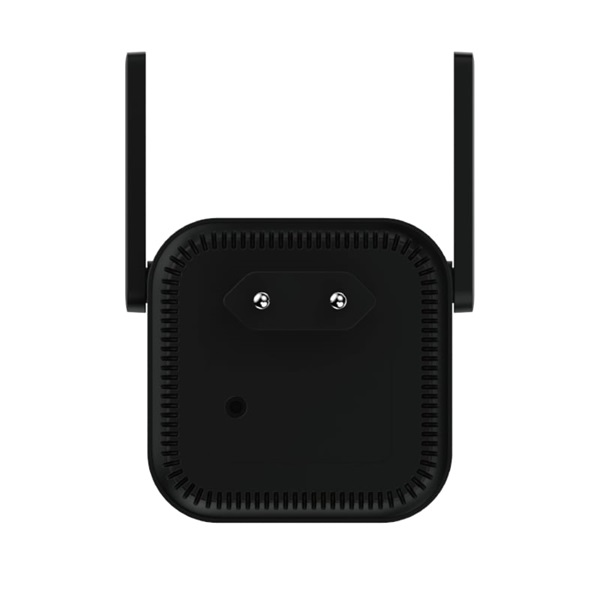

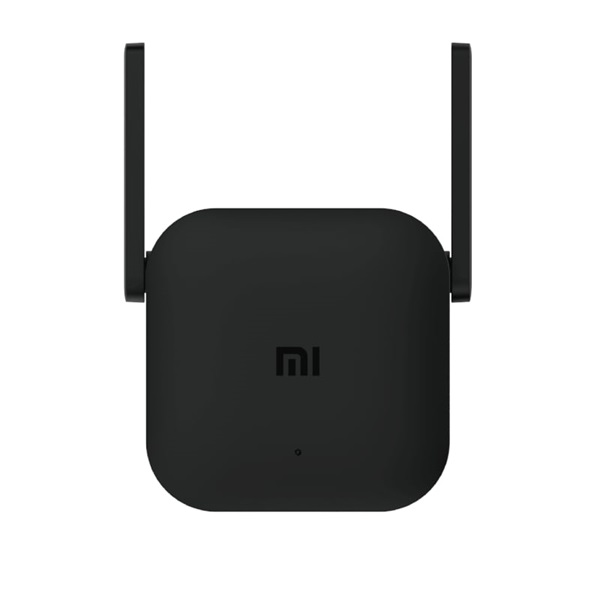

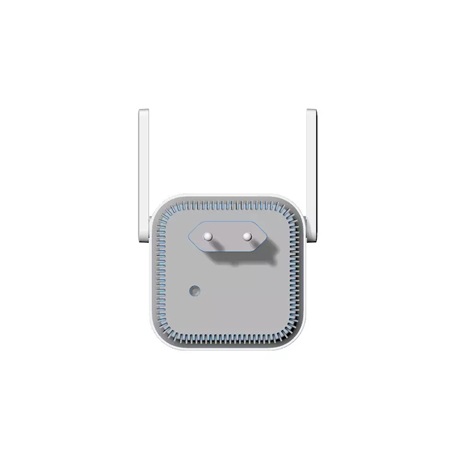

Xiaomi Mi Wi-Fi Range Extender Pro
A Mi Wi-Fi Range Extender Pro javítja a vezeték nélküli internet teljesítményét és hatótávolságát otthonodban.
Nagyon könnyen telepíthető és használható.

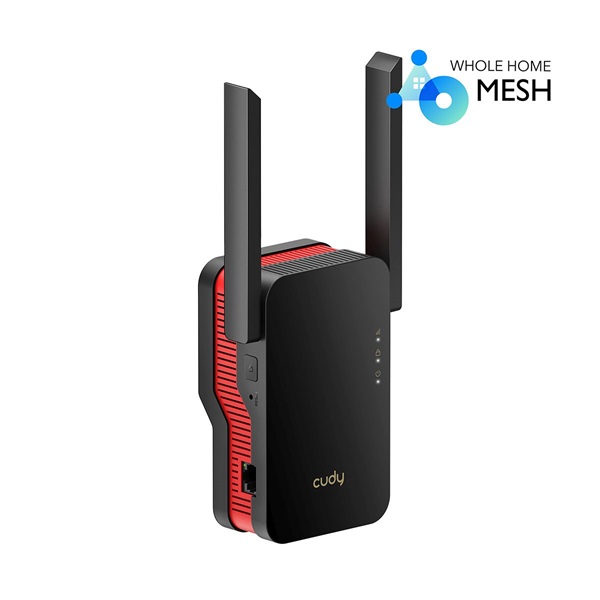

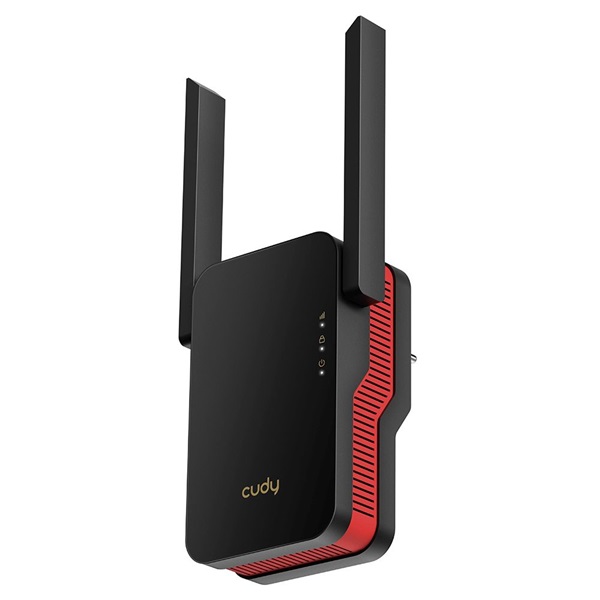

Cudy RE3000 Dual Band AX3000 WiFi 6 Range Extender
Tulajdonságok:
Irány bemérve, jelerősség megnövelve
A beamforming technológia segítségével az RE3000 érzékeli a csatlakozó eszközök helyzetét, és direkt feléjük irányított jelet formál a lefedettség növelésére.
Több csatlakozás a sebesség megtartásával
A továbbfejlesztett WiFi 6 szabvány a letöltési és feltöltési sebesség optimalizálásához is MU-MIMO és OFDMA technológiát használ, amivel a nagyobb mennyiségű adatok továbbítása is csupán pillanatok kérdése. Az alacsony késleltetés és megnövelt WiFi kapacitás magával ragadó játékélményt és teljesen folyamatos videolejátszást biztosít.
Extrém gyors AX3000 WiFi 6 technológia
1,3 GHz-es, kétmagos Cortex-A53 processzor
OFDMA, beamforming és MU-MIMO támogatás
Bármilyen routerrel és hozzáférési ponttal működik
WiFi hálózat lefedettségének növelése egyetlen gombnyomással (WPS)
Gigabites Ethernet csatlakozó vezetékes eszközök számára
Külső antenna a gyosabb WiFi sebességhez és a megbízható működéshez
3 az 1-ben funkció: WiFi jelerősítő / hozzáférési pont / Mesh bővítés
Könnyű telepítés a többnyelvű segéddel
Technikai adatok:
Processzor: MT7981BA + MT7976CN
Támogatott WiFi szabványok: IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n, IEEE 802.11g / IEEE 802.11a / IEEE 802.11b
Működési frekvencia: 2,4 GHz, 5 GHz (11ax)
Adatátviteli sebesség: 5 GHz: max. 2402 Mbps, 2,4 GHz: max. 574 Mpbs
Vezeték nélküli biztonságWireless Security WPA-PSK / WPA2-PSK / WPA3
Csatlakozók 1× 10/100/1000 Mbps RJ45
Tápellátás Közvetlen csatlakozás fali konnektorhoz (100-240 V)
Gombok Reset / WPS
Antenna 2× külső antenna + 1× belső antenna
LED jelzőfények WiFi / WPS / Bekapcsolás

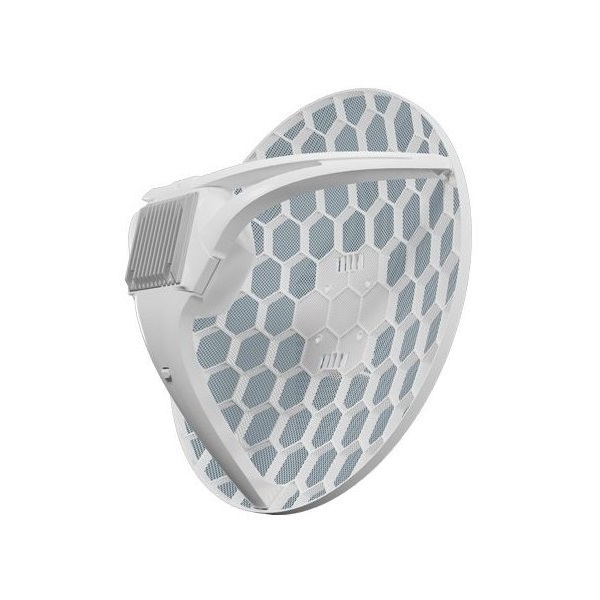

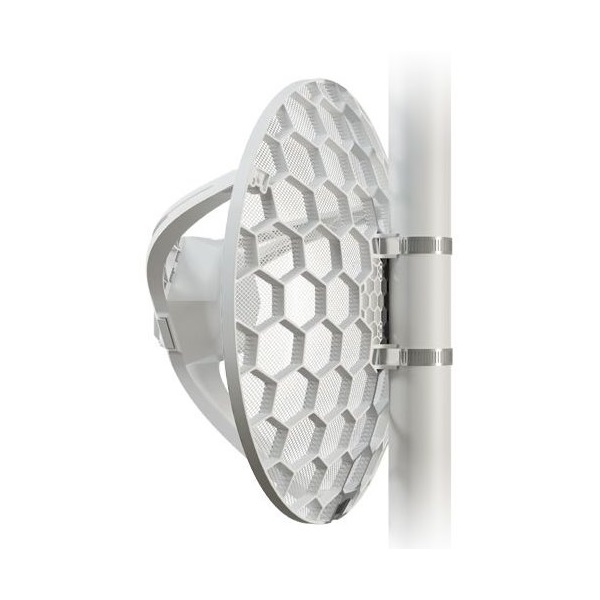

Like the previous LHG LTE models, this is a last mile-internet solution for situations when even your phone might not have any signal. The new LHG comes with a cutting-edge Category 18 LTE modem – for the fastest mobile internet no matter where you are. This kit supports speeds up to one Gbps! Due to its large high-gain 17 dBi antenna, LHG LTE18 kit can connect to cell towers in extreme rural locations where nothing else is available.
There is a massive heat sink, so you don’t have to worry about overheating. The grid antenna design can withstand harsh, windy weather. And it can be mounted in different ways, including poles and masts.
The LHG LTE18 kit features a 1.2 Gbps CAT18 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. If you’re competing for traffic in a place with poor connectivity, the new LHG will give you the upper hand. We have seen internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions
There’s a mighty high-gain antenna inside that supports a variety of LTE bands. It goes as high as 2.7 GHz. And it offers extensive low frequency coverage as well. Keep in mind that the device only supports 2x2 DL MIMO as the LHG has only 2 antenna ports. You’ll be using the Gigabit Ethernet port with PoE-in for powering from an ethernet switch. But we’ve included an injector as well. There’s a standard MicroSIM slot for LTE connectivity. And at the heart of this useful gadget, we have a powerful 64 bit dual-core ARM CPU.
So don’t wait for cable or satellite network providers to reach you – choose LHG LTE18 kit and always stay connected!
Details
Product code
LHGGM&EG18-EA
Architecture
ARM 64bit
CPU
88F3720
CPU core count
2
CPU nominal frequency
800 MHz
RouterOS license
3
Operating System
RouterOS
Size of RAM
256 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Powering
Details
Number of DC inputs
1 (PoE-IN)
Max power consumption
8 W
Max power consumption without attachments
8 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
12-57 V
Mobile
Details
3G Category
R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category
18 (1.2Gbps Downlink, 150Mbps Uplink)
MIMO DL
2x2
LTE FDD bands
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
Ethernet
Details
10/100/1000 Ethernet ports
1
Peripherals
Details
Number of SIM slots
1 Modem (Micro SIM)
Number of M.2 slots
1
Other
Details
Mode button
Yes
Certification & Approvals
Details
Certification
CE, EAC, ROHS
IP
54
Included parts
24V 0.8A power adapter
K-LHG kit
Gigabit PoE injector
Hose clamp 2
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

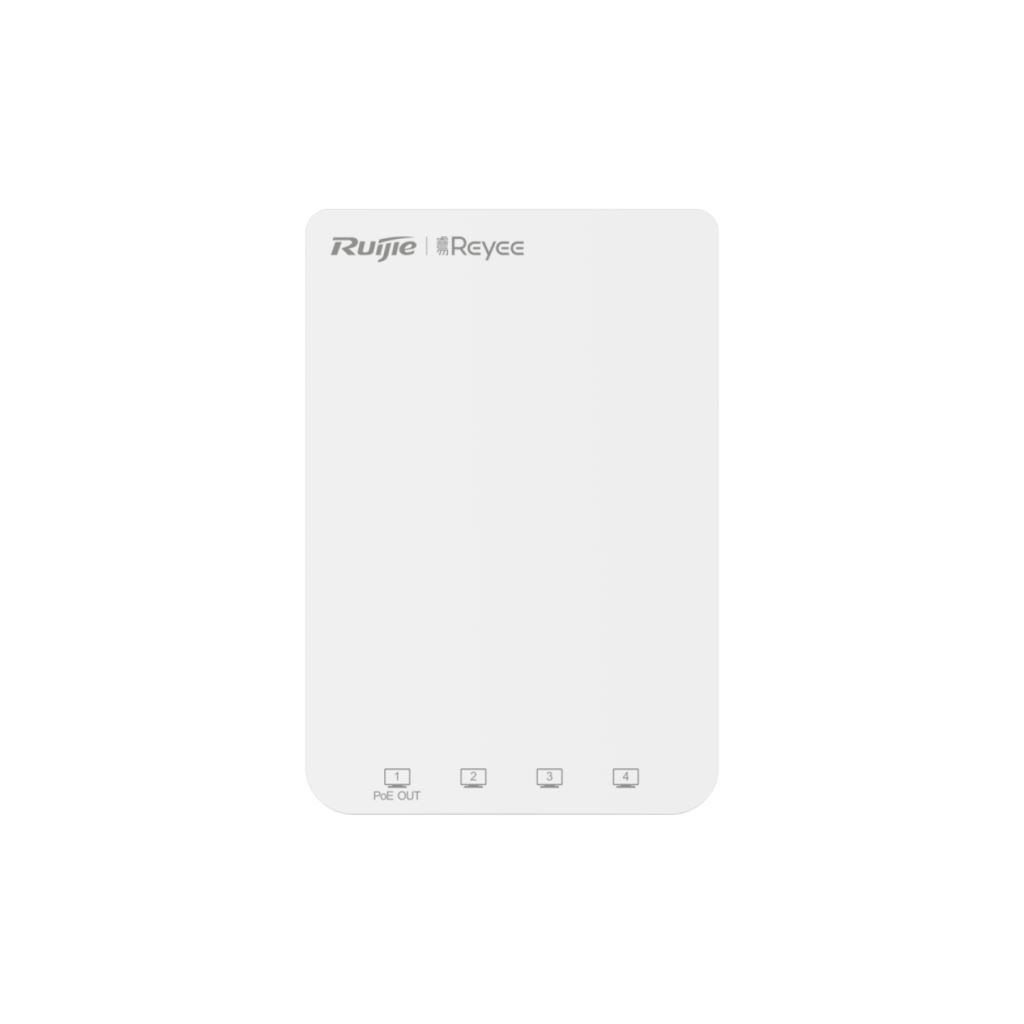

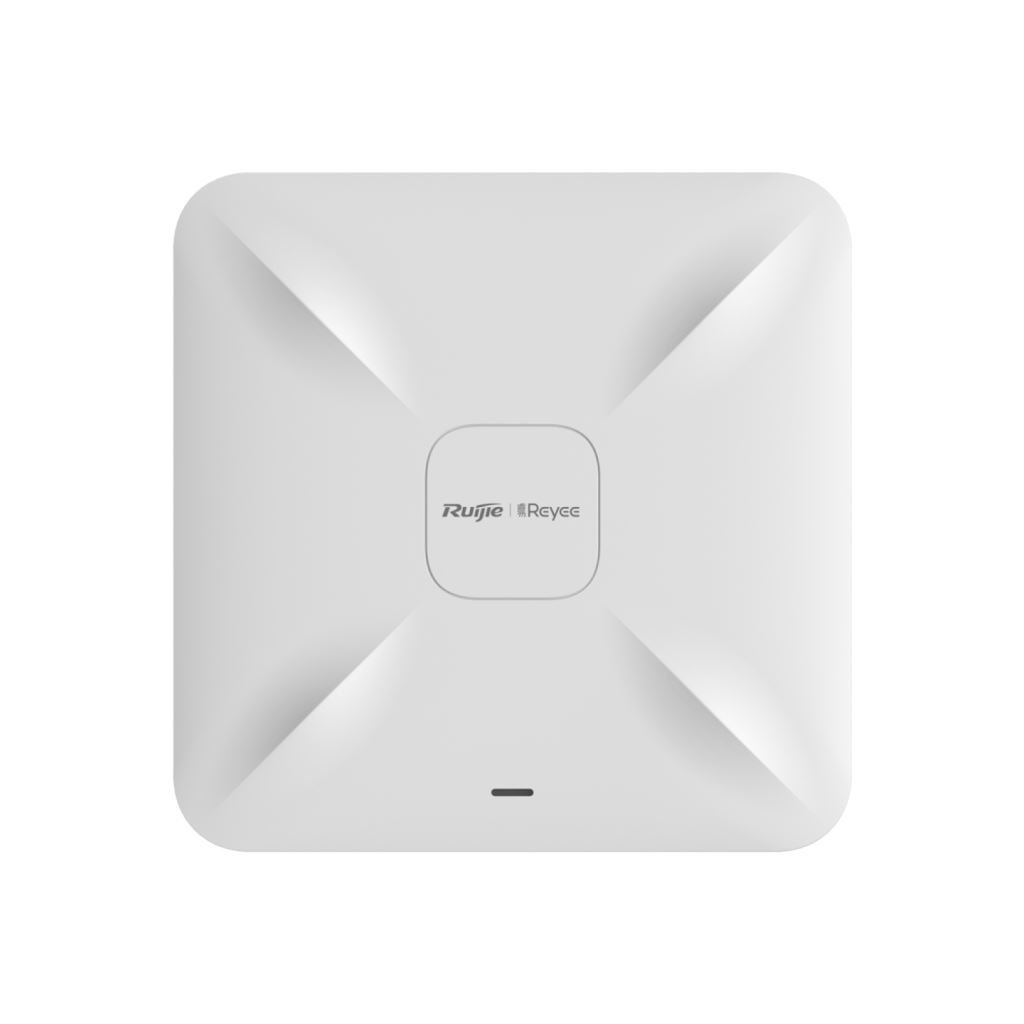

AC1300 Dual Band Wall Access Point, 867Mbps at 5GHz + 400Mbps at 2.4GHz, 2 10/100base-t Ethernet port include 1 uplink port ?Internal Antennas?support 802.11a/b/g/n/ac Wave1/Wave3
AXE11000 Quad-Band WiFi 6: 4× 1201 Mbps (6 GHz) + 4× 600 Mbps (5 GHz_1) + 4× 600 Mbps (5 GHz_2) + 4× 287 Mbps (2.4 GHz), WiFi 6 on 6 GHz Band: Minimal congestion on a new frequency that delivers lightning-fast connections. High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, and BSS Coloring. 10G Wired Connection: Boosts overall throughput with a 10 Gbps Ethernet port supported by an 802.3bt PoE++ power supply. Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

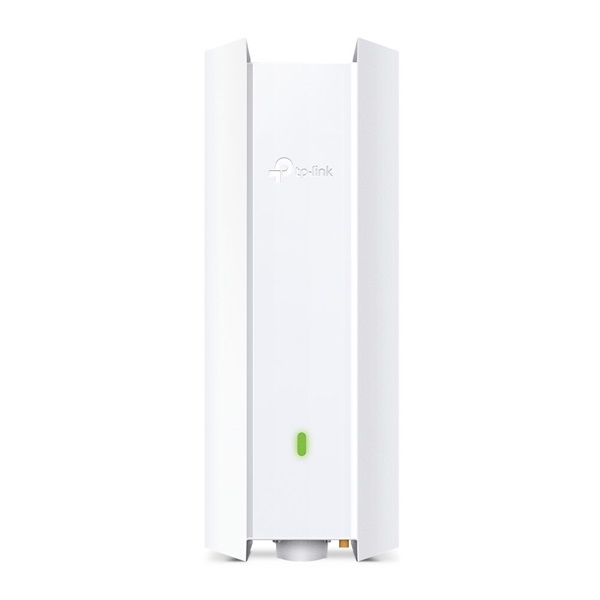

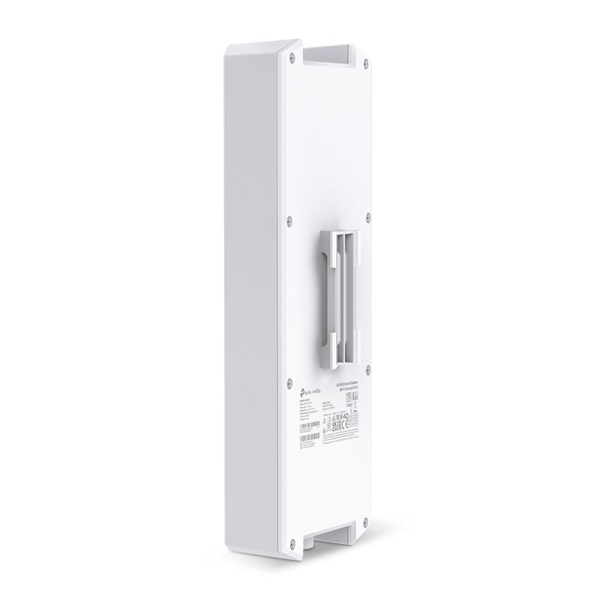

AX1800 Dual Band Outdoor Wi-Fi6 Access Point, IP68 waterproof, 1201Mbps at 5GHz + 574Mbps at 2.4GHz, 2 10/100/1000base-t Ethernet uplink port, Internal omnidirectional antennas?support 802.11a/b/g/n/ac Wave1/acWave2/ax, Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) 802.3at PoE (Warning: Can not get the best performance using 802.3af PoE adapter.)

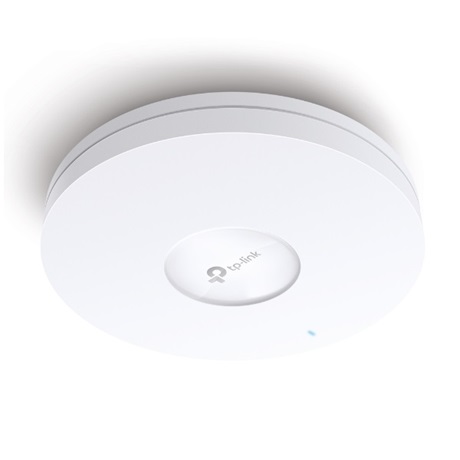

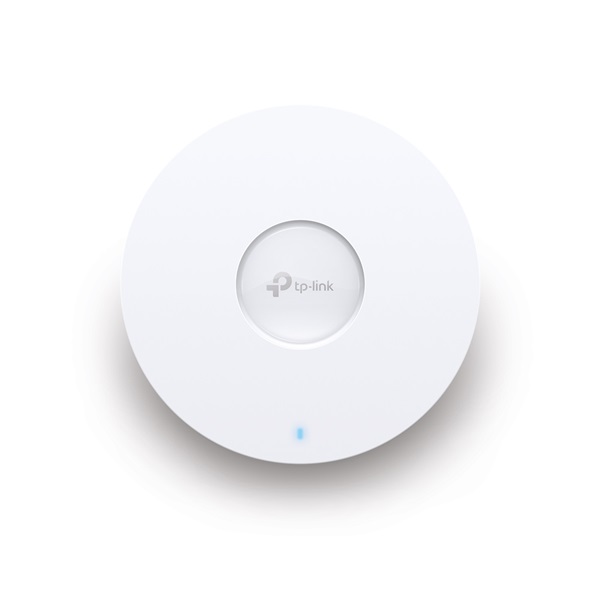

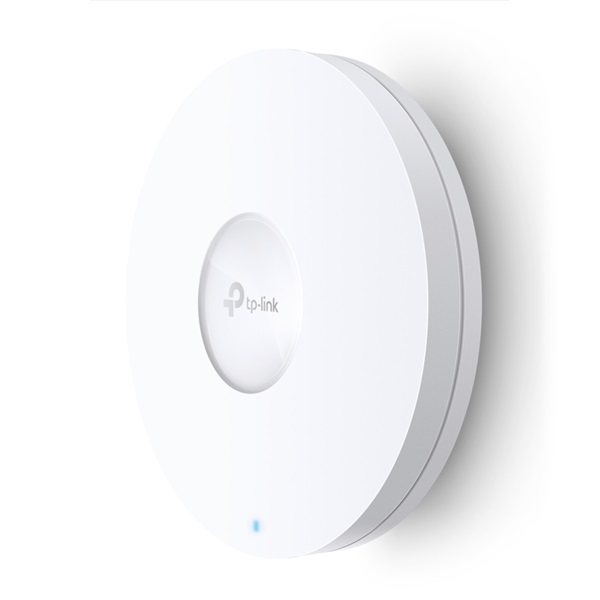

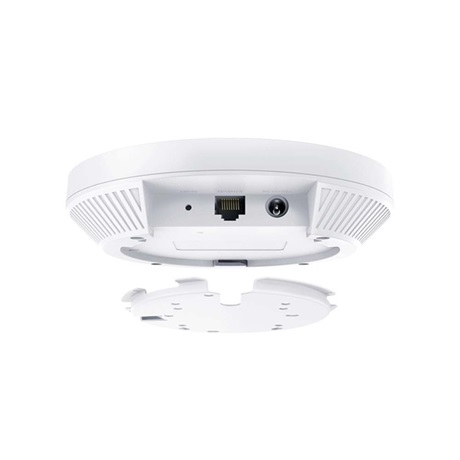

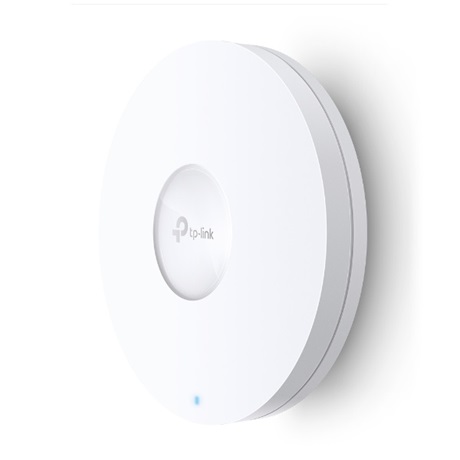

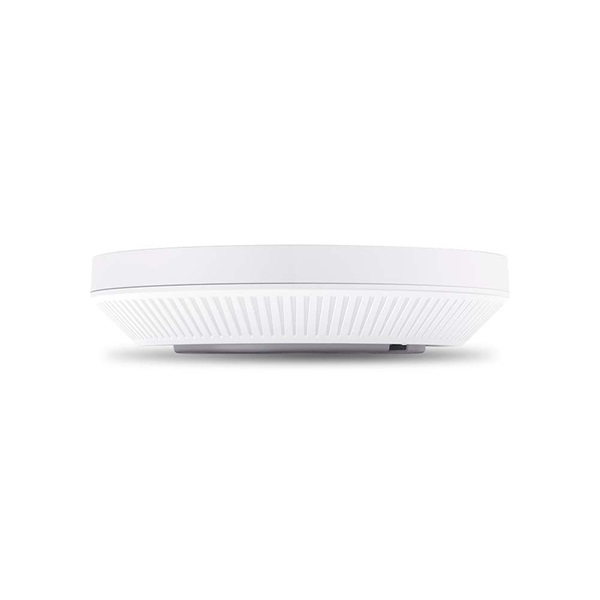

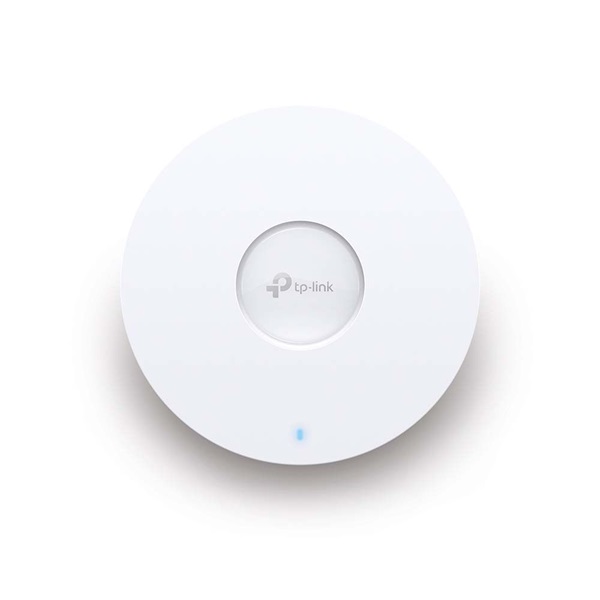

AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point PORT:1× Gigabit RJ45 Port SPEED:574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz FEATURE: 802.3at POE and 12V DC (Power Adapter is not included), 2×Internal Antennas, MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App

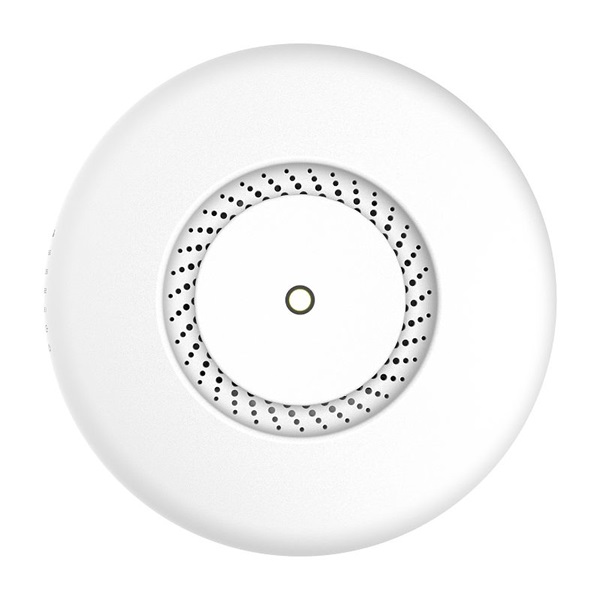

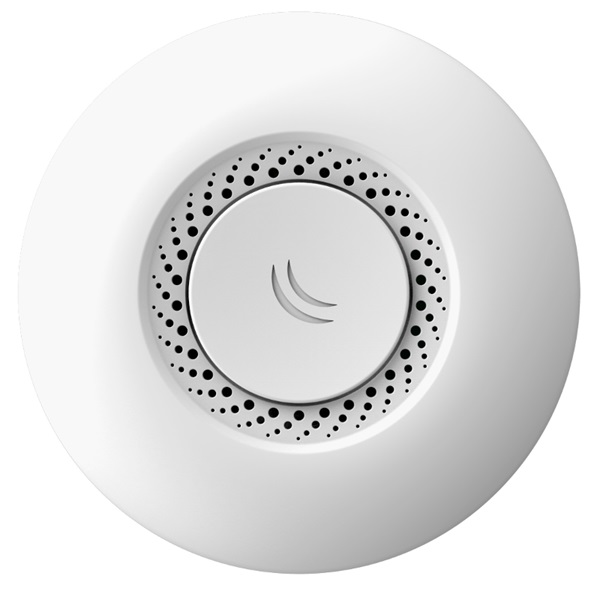

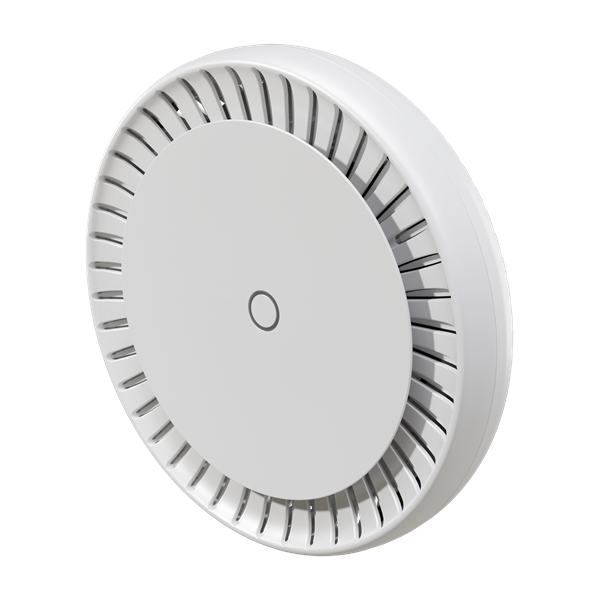

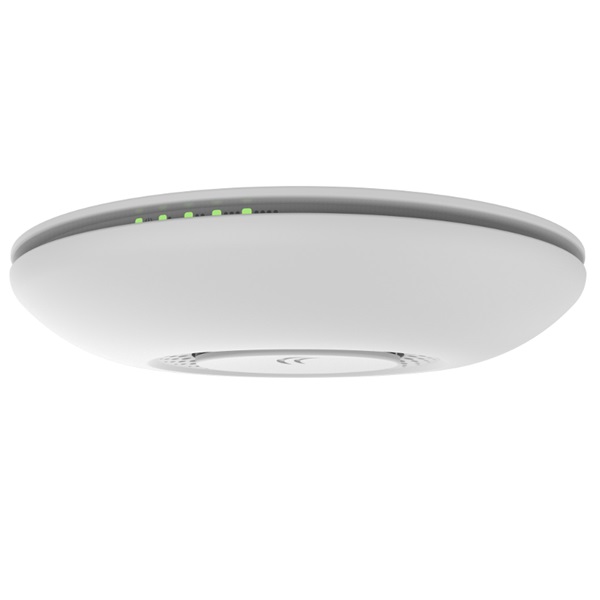

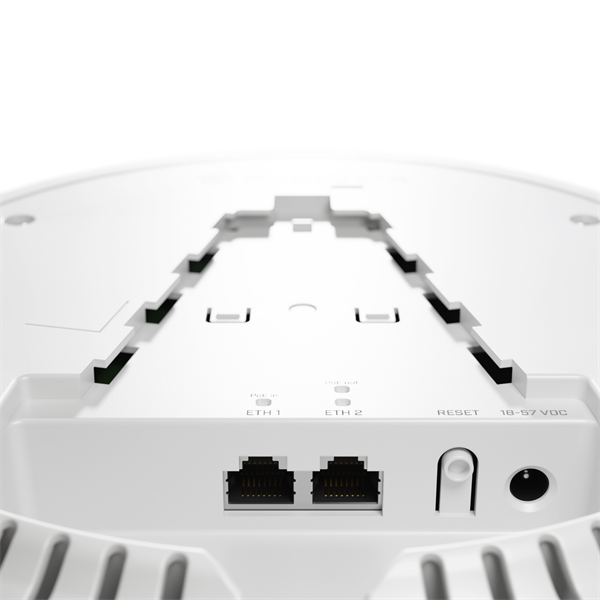

Specifications
Details
Product code
cAPGi-5HaxD2HaxD
Architecture
ARM 64bit
CPU
IPQ-6010
CPU core count
4
CPU nominal frequency
auto (864 - 1800) MHz
Switch chip model
IPQ-6010
RouterOS license
4
Operating System
RouterOS (v7 only)
Size of RAM
1 GB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
IPsec hardware acceleration
Yes
Suggested price
$129.00
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
6
Wireless 2.4 GHz chip model
QCN-5022
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1200 Mbit/s
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
QCN-5052
Wireless 5 GHz generation
Wi-Fi 6
WiFi speed
AX1800
Ethernet
Details
10/100/1000 Ethernet ports
2
Number of 1G Ethernet ports with PoE-out
1
Powering
Details
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
18-57 V
Max power consumption
28.2 W
Max power consumption without attachments
9 W
Cooling type
Passive
PoE in
802.3af/at
PoE in input Voltage
18-57 V
PoE-out
Details
PoE-out ports
Ether2
PoE out
Passive PoE up to 57V
Max out per port output (input 18-30 V)
600 mA
Max out per port output (input 30-57 V)
400 mA
Max total out (A)
600 mA
Total output current
0.4
Total output power
19.2
Certification & Approvals
Details
Certification
CE, FCC, IC, EAC, ROHS
IP
20
Other
Details
CPU temperature monitor
Yes
Mode button
Yes
Wireless specifications
2.4 GHz
Transmit (dBm)
Receive Sensitivity
1MBit/s
-100
11MBit/s
-94
6MBit/s
24
-96
54MBit/s
21
-80
MCS0
24
-96
MCS7
20
-75
MCS9
19
-70
MCS11
17
-67
5 GHz
Transmit (dBm)
Receive Sensitivity
6MBit/s
24
-96
54MBit/s
21
-80
MCS0
24
-96
MCS7
20
-75
MCS9
19
-70
MCS11
17
-67
