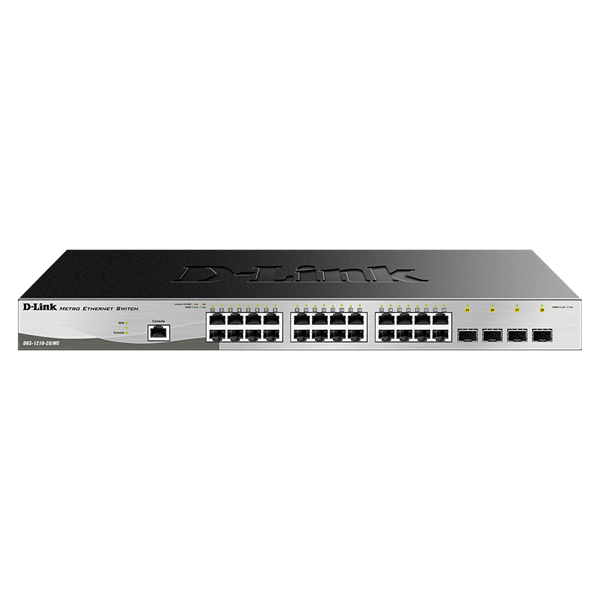

DGS-1210-28/ME 28-Port Gigabit Metro Ethernet Switch DGS-1210-28MP/ME 28-Port PoE Gigabit PoE Metro Ethernet Switch DGS-1210-28P/ME 28-Port Gigabit PoE Metro Ethernet Switch DGS-1210-28X/ME 28-Port Gigabit Metro Ethernet Switch 24 x 10/100/1000BASE-T ports 4 x SFP ports 24 x 10/100/1000BASE-T PoE ports 4 x SFP ports 24 x 10/100/1000BASE-T PoE ports 4 x SFP ports 24 x 10/100/1000BASE-T ports 4 x 10G SFP+ ports Performance 56 Gbps 56 Gbps 56 Gbps 128 Gbps 41.7 Mpps 41.7 Mpps 41.7 Mpps 95.24 Mpps PoE no 370 W 193 W no Technical Specification 60.12 BTU/hr 1552.32 BTU/hr 857.98 BTU/hr 83.72 BTU/hr 19.05 W/100 V 19.14 W/240 V 455 W (PoE on) 35.6 W (PoE off) 251.5 W (PoE on) 28.7 W (PoE off) 24.5 W/100 V 24.4 W/240 V 497,918 hours 267,960 hours 331,699 hours 450,021 hours

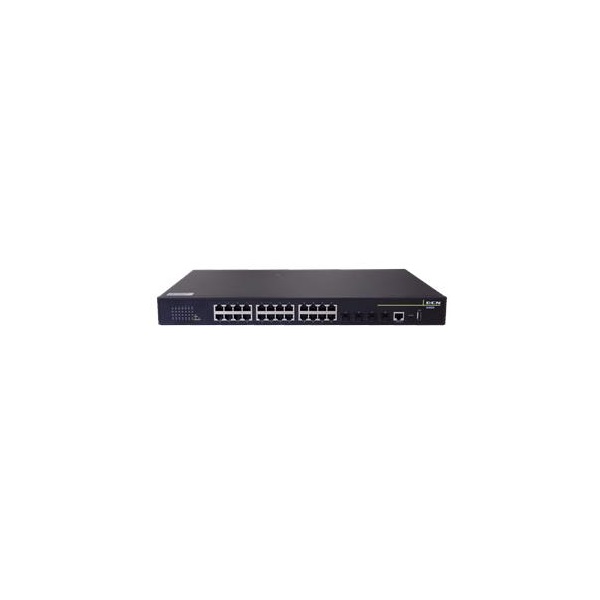

Ports 10/100/1000 Base-T (RJ45) 24 Ports 1/10G Base-X (SFP+) 4 Performance Switching matrix 128 Gbps Data transfer rate 95 Mpps Packet Buffer 1,5 MB JUMBO Frame 10 K Number of VLANs 4 K MAC address table 16 K Multi-broadcast support 1 K MAC address table additional information Shared MAC address array for unicast and multicast (1:1 ratio) ACL Table 384 Number of Vlan Interfaces (IP) 512 CPU Clock 800 MHz Number of Base-T ports (RJ45) 24 Available Base-T (RJ45) port speeds 10 ; 100 ; 1000 Number of Base-X ports (Optical) 4 Available Base-X (Optical) port speeds 1000; 10G Ports 1/10G Base-X (SFP+) 4 Console port- RS-232 (RJ45) Yes OOB Management Port No Port USB Yes PoE available No Functionality of VSF Yes Functionality of PIM Router No Power supply 1 x 230V RPSU No Hot Swap PSU No RPS No Cooling Passive Flash memory 32 MB RAM memory 256 MB Features Enhanced Accessibility Features IEEE 802.1D STP/802.1w RSTP/802.1s MSTP, IEEE 802.3ad LACP, Virtual Cable Testing, DDM, LLDP / LLDP-MED, Loop guard, ERPS (ITU-T G.8032) Traffic control 802.1Q VLAN, Port-based VLAN, Protocol-based VLAN, IP Subnet-based VLAN, Voice VLAN, Mac VLAN, Source/Destination IP LACP Algorithm (Load Balancing), GVRP, 802.1ad Vlan Stacking (QinQ), Flexible QinQ Security Layer 2 MAC filtering, BPDU Tunnel, Login authentication and authorization by RADIUS and TACACS+, TACACS+ accounting/ auditing, SSH v1/v2, DHCP/DHCPv6 snooping, IP/IPv6 Source Guard, Port security, IEEE 802.1x port-based / mac-based QoS 802.1p Queue Priority Per Port, 802.1p Queuing Method, Trusted COS/TOS/IP/DSCP/Port Number Order, Broadcast Storm Control, Rate Limiting, Port-based, Strict Priority, Weighted Deficit Round Robin, Weighted Random Early Detection, Strict Priority in Weighted Deficit Round Robin L2/L3 multicast Multicast VLAN, IGMP v1,v2, v3, IGMP Query, IGMP Snooping (v1,v2,v3), IGMP Snooping Fast Leave (v2,v3), IPv6 MLD v1/v2 Snooping L3 IPv6 IPv4/IPv6 Dual Protocol Stack, IPv6 address Management RS-232 (RJ45) console port, GUI (Web), Telnet, SNMP v1/v2c/v3, TFTP/FTP, configuration backup and restore, multilevel command line interface, DHCP client/relay/server, DHCP relay to VLAN, DHCP 43 /60/82 option, DHCPv6 37/38 option, relay/server DHCPv6, SNTP/NTP, sFlow, stack (VSF), port mirroring over IP/TCP/UDP, RSPAN, IEEE 802.3ah EFM, IEEE 802.1ag CFM MIB RFC 1066 TCP/IP-based MIB, RFC1213, 1157 SNMPv2c/v3 MIB, RFC1493 bridge MIB, RFC 2674 bridge MIB extension, RFC1643 ethernet MIB, RFC1757 RMON group 1/2/3/9, RFC 2925 Remote Management MIB, RFC 2233 (rfc2233) - SMIv2 MIB Electric Fans Fanless Power Supply 230 V AC Maximum power consumption ? 21 W
AC charger Colorway Power Delivery Port PPS USB (Type-C PD + USB QC3.0) (45W) is a powerful adapter equipped with USB and PD ports, which allows you to charge 2 devices simultaneously. The charger supports the latest fast charging technology, Apple Fast Charge, Huawei FCP, Quick Charge 2.0&3.0, Samsung AFC with an output power of up to 45 W. Suitable for both high-speed charging of mobile devices and for charging devices in normal mode. Intelligent USB Auto ID detects the type of connected device, regulates voltage and current, ensuring fast charging and high compatibility with devices from most brands. The charger is equipped with an intelligent chip to protect your devices from short circuit, overvoltage, overheating and overcurrent. The fire-resistant ABS case will not overheat when charging, ensuring excellent performance regardless of scratches, bumps or drops. Protect yourself and your equipment from the inside out.

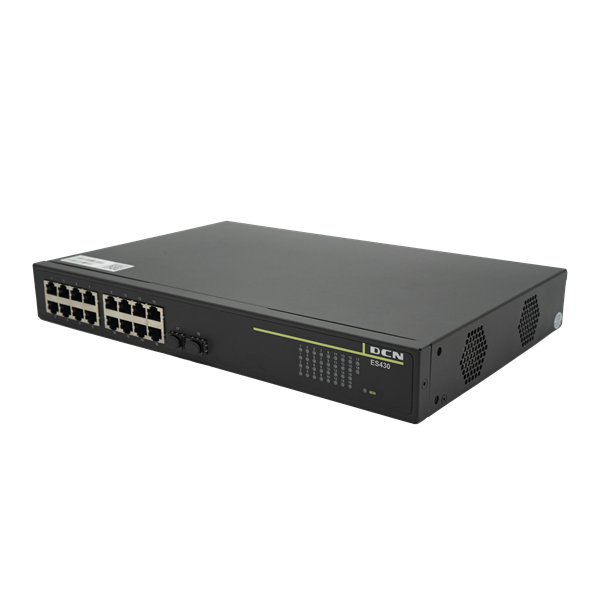

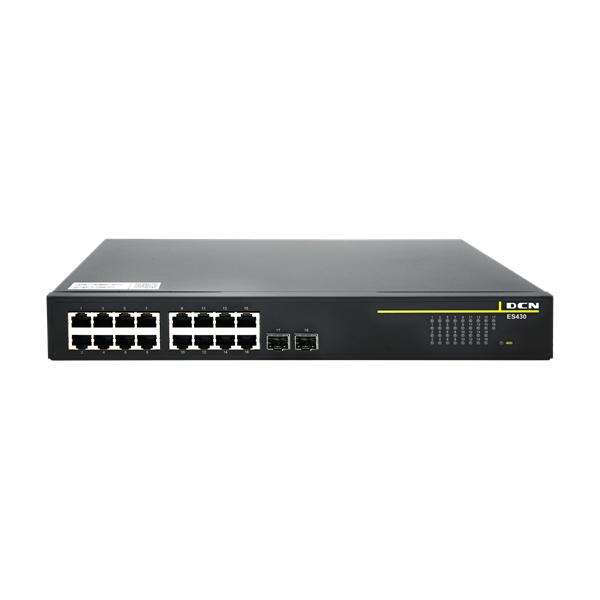

Ports 10/100/1000 Base-T (RJ45) ports 16 Combo (RJ45 or SFP) 2 Technical specification MAC addresses 8 K Switching capacity 36 Gbps Forwarding rate 26,78 Mp/s VLAN 4 K, Port-based, IEEE 802.1Q Standards & Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1Q DHCP IPv4/IPv6 DHCP Client Multicast IGMP snooping Traffic control Port bandwidth control Security DHCP snooping, Storm suppression Management Web GUI Yes imCloud (cloud management) Yes IP address for management 1 Default 192.168.2.1 Static (manually set) Yes Obtained from DHCP server Yes Port Management Monitoring of port status and statistics

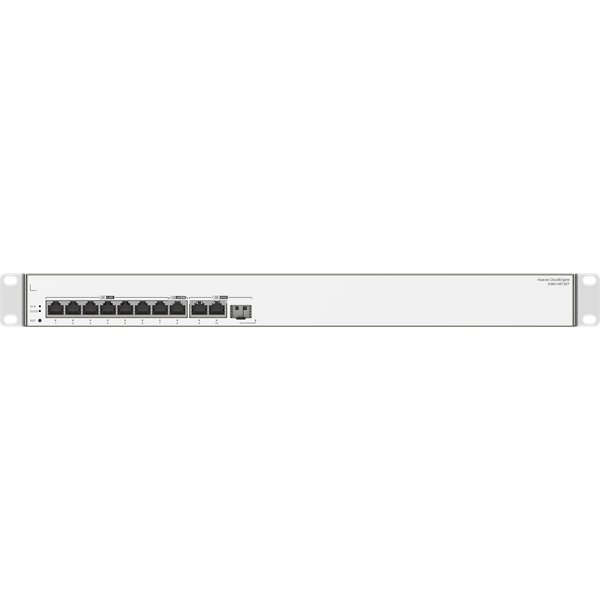

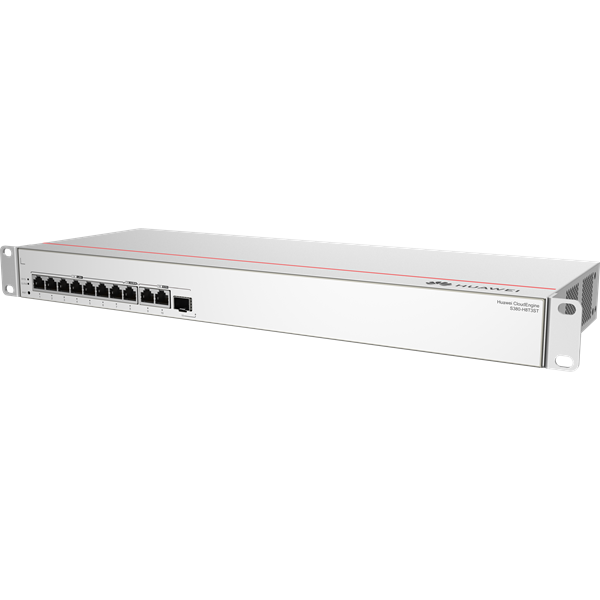

First supported version V600R022C10 Integrated fixed device Y Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) Chassis height [U] 1 Installation type Rack mounting,Desk mounting,Wall mounting Weight without packaging [kg(lb)] 1.6 (3.53) Weight with packaging [kg(lb)] 2.1 (4.63) Typical power consumption [W] 11.25 Typical heat dissipation [BTU/hour] 38.4 Maximum power consumption [W] 11.5 Maximum heat dissipation [BTU/hour] 39.2 Static power consumption [W] 6.49 100% power consumption [W] 11.49 MTBF [year] 63.71 MTTR [hour] 2 Availability >0.99999 Noise at normal temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30 Noise at high temperature (acoustic power) [dB(A)] Noise-free (no fans), < 30 Noise at normal temperature (acoustic pressure) [dB(A)] Noise-free (no fans), < 20 Number of card slots 0 Number of power slots 0 Number of fans modules 0 Maximum number of physical ports on the entire device 11 Maximum number of 100GE ports 0 Maximum number of 40GE ports 0 Maximum number of 25GE ports 0 Maximum number of 10GE ports 0 Maximum number of 5GE ports 0 Maximum number of 2.5GE ports 0 Maximum number of GE ports 11 Maximum number of FE ports 10 Dedicated stack port Not supported Redundant power supply Not supported Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Power supply mode AC built-in Rated input voltage [V] AC input: 100–240 V AC; 50/60 Hz Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Maximum input current [A] 0.8 A CPU Quad-core, 800 MHz Memory DDR4: 1 GB Flash memory NAND Flash: 512 MB Storage - Console port Not supported Eth Management port LAN port USB Not supported Hardware real-time power detection Not supported Dying gasp Not supported RTC Not supported RPS input Not supported Complete device sleeping Not supported Service port surge protection [kV] Common mode: ±4 kV Power supply surge protection [kV] Power adapter: ±6 kV in differential mode and ±6 kV in common mode Ingress protection level (dustproof/waterproof) IP20 Types of fans None Heat dissipation mode Natural heat dissipation Airflow direction - PoE Not supported Maximum PoE power consumption [W] - PoE+ power interfaces - PoE++ power interfaces - Full load PoE power consumption 15.4W (802.3af) - Full load PoE power consumption 30W (802.3at) - Full load PoE++ power consumption 60W (802.3bt) - Full load PoE++ power consumption 90W (802.3bt) - Certification EMC certification Safety certification Manufacturing certification
HARDWARE FEATURES Dimensions 4.8 × 3.09 × 0.85 in (120.8 ×78.5 ×21.5 mm) Antenna Type 2× High-Performance Tri-Band Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be WLAN Signal Rate 6 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) WLAN Reception Sensitivity 6 GHz: 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm 5 GHz: 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm 2.4 GHz: 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm WLAN Transmit Power 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP) 5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP) WLAN Modes Infrastructure mode Wireless Security WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK OTHERS Certification FCC/CE/IC/NCC/JRF/VCCI/BSMI Package Contents Archer TBE400E 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD System Requirements Supported operating system: Windows 11(64-bit) only Environment Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Accessories Specifications Bluetooth Header Cable Length: 0.3 m
CARACTERÍSTICAS DE HARDWARE Interfaz • 32× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port Cantidad de Ventiladores 1??? Bloqueo de Seguridad Físico ? Fuente de Alimentación • 1+1 Redundant Power Supply (fixed)• 100-240 V AC~50/60 Hz Dimensiones 17.3×13.0×1.7 in (440×330×44 mm) Montaje Rack Mountable Consumo de Potencia Máximo 32.74 W (220 V / 50 Hz)??? Disipación máxima de calor 111.71 BTU/hr (220 V / 50 Hz)??? RENDIMIENTO Capacidad de Conmutación 640 Gbps Tasa de Reenvío de Paquetes 476.16 Mpps??? Tabla de Direcciones MAC 32 K??? Memoria del Buffer de Paquete 24 Mbit??? Jumbo Frame 9 KB??? CARACTERÍSTICAS DE SOFTWARE Calidad de Servicio • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow-based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)??? Características L2 y L2+ • 128 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 512 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring??? Multicast L2 • Supports 1000 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile??? Características Avanzadas • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features*:• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM• DDM• sFlow??? VLAN • VLAN Group (802.1q VLAN): Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 30 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 12• Private VLAN• GVRP• VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ• Voice VLAN??? Lista de Control de Acceso • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL applies to Port/VLAN??? Seguridad • IP-MAC-Port Binding- 512 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard• IPv6-MAC-Port Binding- 512 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard• DoS Defend• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• 802.1X- Port base authentication- MAC-based authentication- VLAN Assignment- MAB- Guest VLAN- Radius authentication and accountability support• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control??? IPv6 • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP??? MIBs • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB??? GESTIÓN Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Gestión Centralizada • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller. Funciones de gestión • Web-based GUI• Command Line Interface (CLI) through the console port, telnet• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log Otros Certificaciones CE, FCC, RoHS Contenido del Paquete • SX3032F Switch• 2× Power Cords• Quick Installation Guide• Rackmount Kit• Rubber Feet Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Factores Ambientales • Operating Temperature: 0–45 ? (32–113 ?);• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing???
