2 db-ból álló szett. 2 Gbps sebességű WiFi-híd a gyors otthoni multimédia-hálózat megteremtéséhez. A kapcsolatot 1 gigabites + 4 gyors Ethernet port (RJ 45) biztosítja a kábeles internet használóknak.
2 Gbps sebességű WiFi-híd a gyors otthoni multimédia-hálózat megteremtéséhez. 4 gyors Ethernet kapcsolattal és 1 nagy sebességű gigabit porttal (RJ 45) rendelkezik a magas teljesítményű eszközökhöz.
The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/?? standards, and will provide coverage in 360 degrees around it. Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too. - cAP ac (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). - cAP ac-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. Specifications Details Product code RBcAPGi-5acD2nD Architecture ARM 32bit CPU IPQ-4018 CPU core count 4 CPU nominal frequency 716 MHz Dimensions Round case: ? 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm License level 4 Operating System RouterOS Size of RAM 128 MB Storage size 16 MB Storage type FLASH Tested ambient temperature -40°C to 50°C Powering Details PoE in 802.3af/at PoE in input Voltage 17-57 V PoE out Passive PoE up to 57V PoE-out ports Ether2 Number of DC inputs 1 (PoE-IN) Max out per port output (input > 30 V) 400 mA Max out per port output (input < 30 V) 500 mA Max total out (A) 500 mA Max power consumption 24 W Max power consumption without attachments 13 W Wireless Details AC speed AC1200 Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model IPQ-4018 Wireless 2.4 GHz generation Wi-Fi 4 Wireless 5 GHz Max data rate 867 Mbit/s Wireless 5 GHz number of chains 2 Wireless 5 GHz standards 802.11a/n/ac Antenna gain dBi for 5 GHz 2.5 Wireless 5 GHz chip model IPQ-4018 Wireless 5 GHz generation Wi-Fi 5 Ethernet Details 10/100/1000 Ethernet ports 2 Other Details Mode button Yes Certification & Approvals Details Certification CE/RED, FCC, IC, EAC, ROHS Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 26 -100 11MBit/s 26 -94 6MBit/s 26 -96 54MBit/s 23 -78 MCS0 26 -96 MCS7 22 -73 5 GHz Transmit (dBm) Receive Sensitivity 6MBit/s 26 -96 54MBit/s 21 -80 MCS0 26 -96 MCS7 20 -75 MCS9 18 -70 Included parts 24V 1.2A power adapter Ceiling mount Gigabit PoE injector K-46 screw kit
5GHz, 25dbi,
Specifications Details Product code RBcAP2nD Architecture MIPSBE CPU QCA9533 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 185mm diameter, 31mm height RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C Wireless capabilities Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model QCA9533 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 4 W FAN count Passive PoE in 802.3af/at PoE in input Voltage 11-57 V Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Wireless specifications 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 22 -96 11MBit/s 22 -89 6MBit/s 20 -93 54MBit/s 18 -74 MCS0 20 -93 MCS7 16 -71 Included parts PoE injector 24V 0.38A power adapter K-46 screw kit Ceiling mount
HARDVER JELLEMZŐK Processzor Qualcomm 1 GHz Quad-core CPU Csatlakozások 2 LAN/WAN Gigabit Ethernet Ports Gomb 1 Reset button on the underside Dimensions Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm) Antenna 4 internal antennas per Deco unit VEZETÉK NÉLKÜLI JELLEMZŐK Wi-Fi sztenderd IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz Frekvencia 5 GHz 2.4 GHz Adatátvitel 2402 Mbps (5 GHz) 574 Mbps (2.4 GHz) Sugárzási teljesítmény FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) Vezeték nélküli biztonság WPA-PSK WPA2-PSK WPA3 További funkciók ? Router/ Access Point Mode ? Optional Ethernet Backhaul ? TP-Link Mesh Technology: MU-MIMO OFDMA 1024-QAM BSS Color Auto Path Selection Self-Healing AP Steering Band Steering Beamforming SZOFTVER JELLEMZŐK QoS (szolgáltatás minősége) WMM IPv6 Support WAN típus Dynamic IP/Static IP/PPPoE Vezérlés Local Management, Remote Management DHCP Server, Client Port Forwarding Support Hozzáférés kezelése Blacklist Tűzfal biztonság SPI Firewall Protokollok Supports IPv4 and IPv6 További jellemzők Homecare: Antivirus Parental Controls Quality of Service További funkciók Speedtest Monthly Usage Reports Auto FW Update Expand Coverage by Adding more decos Vendéghálózat 2.4 GHz guest network * 1 5 GHz guest network * 1 Nyalábformálás Support Mobil alkalmazás Easy setup by Deco App EGYÉB JELLEMZŐK Tanúsítványok CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS Csomagolás tartalma ? Deco X60 (3-pack): 3 Deco X60 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Smartphone/Tablet Requirements iOS 9.0 or later Android 4.4 or later Környezet Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES Interface 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE) Button Reset Power Supply 48V Passive PoE (+4,5pins; -7,8pins); 802.3af PoE Power Consumption 4.11 W Dimensions ( W x D x H ) 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm) Antenna Type 2× 3 dBi External Omni waterproof Weatherproof Enclosure IP65 Mounting Pole / Wall Mounting (Kits included) WIRELESS FEATURES Wireless Client Capacity 100+** Wireless Standards IEEE 802.11n/g/b Frequency 2.4 GHz Signal Rate • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) Transmit Power • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm Wireless Functions • Multiple SSIDs(Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK MANAGEMENT Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes OTHERS Certification CE, FCC, RoHS Package Contents • 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux Environment • Operating Temperature: -30–65 ? (-22–149 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

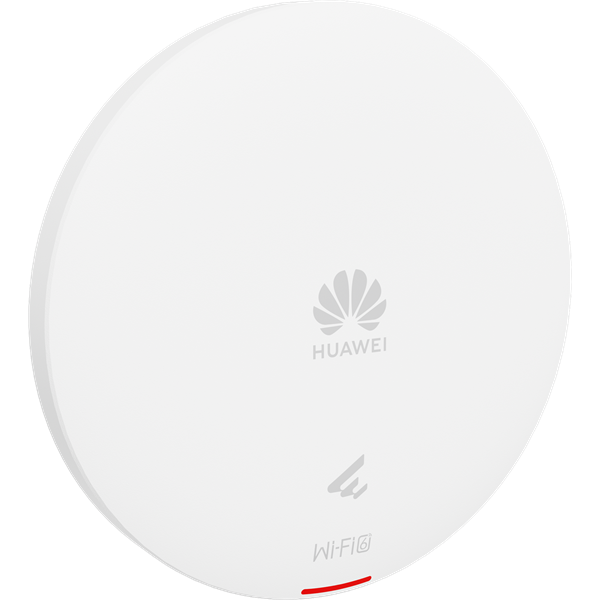

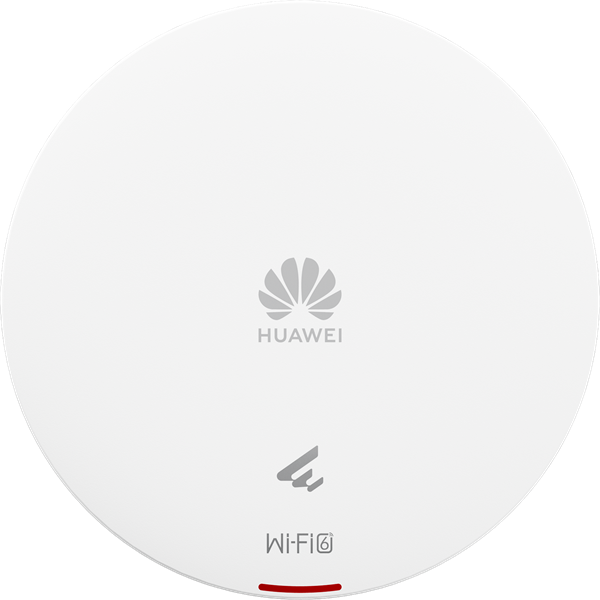

First supported version V200R023C00 Integrated fixed device Y Installation Type Wall,Ceiling,T-Rail Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) Dimensions with packaging (H x W x D) [mm(in.)] 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) Weight without packaging [kg(lb)] 0.45 kg (0.99 lb) Weight with packaging [kg(lb)] 0.75 kg (1.65 lb) CPU 2-core, 1.2 GHz Memory DDR3 256 MB Console port None Power supply mode PoE Storage NAND Flash 256 MB Rated input voltage [V] NA Input voltage range [V] PoE: 802.3af Service port surge protection PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground Radio number 2 MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax Radio interface Built-in smart antennas Antenna gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) Maximum transmit power 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) MTBF [year] 440.3 MTTR [hour] 2 Maximum power consumption [W] 8.8 Maximum heat dissipation [BTU/hour] 28.5 802.3bt power supply description No function is limited. 802.3at power supply description No function is limited. 802.3af power supply description No function is limited. DC power supply description DC power supply is not supported. Operating frequency band 2.4GHz,5GHz Frequency stability [ppm] +/-20

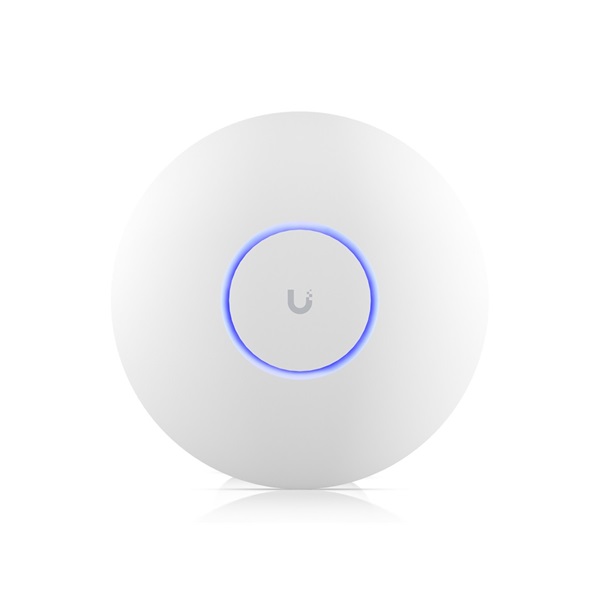

Mechanical Dimensions O206 x 46 mm (O8.1 x 1.8") Weight 680 g (1.5 lb) Enclosure material Polycarbonate, metal Mount material Stainless steel (SUS304), galvanized steel (SGCC) Hardware Networking interface (1) 1/2.5 GbE RJ45 port Management interface Ethernet Power method PoE+ Power supply UniFi PoE switch Supported voltage range 44—57V DC Max. power consumption 21W Max. TX power 2.4 GHz 5 GHz 6 GHz 22 dBm 26 dBm 23 dBm MIMO 2.4 GHz 5 GHz 6 GHz 2 x 2 2 x 2 2 x 2 Throughput rate 2.4 GHz 5 GHz 6 GHz 688 Mbps 2882 Mbps 5765 Mbps Antenna gain 2.4 GHz 5 GHz 6 GHz 4 dBi 6 dBi 5.8 dBi LEDs White/blue Button Factory reset Mounting Wall/ceiling (Included) Operating temperature -30 to 60° C (-22 to 140° F) Operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11a/b/g/n/ac/ax/be Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) Application Requirements UniFi Network Version 8.0.26 and later UniFi OS Version 3.2 and later

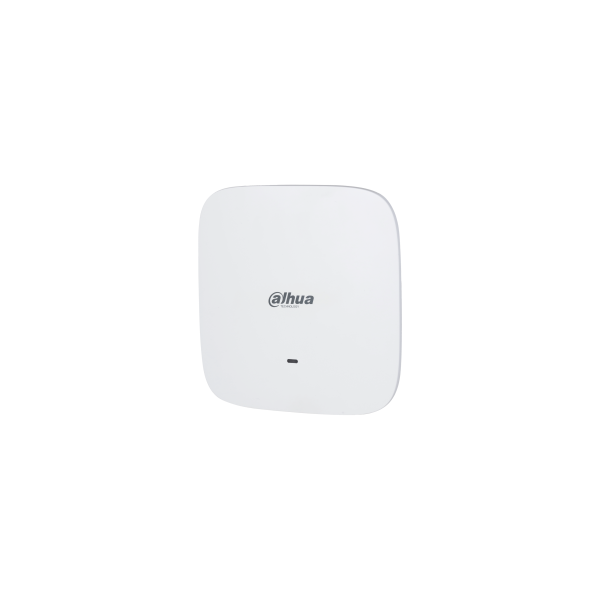

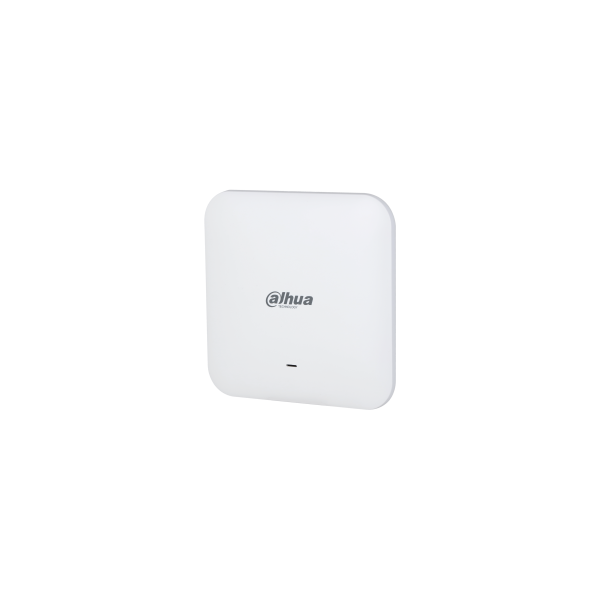

Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point Wireless Standard IEEE 802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4GHz: 575 Mbps 5GHz: 1200 Mbps Frequency band 2.4 GHz USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40-, 80-MHz Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm EU (2.4GHz/5GHz): 20/25 dBm RF Design Antenna type 2x2 + 2x2 MIMO embedded antenna Antenna gain 2.4GHz: 3 dBi 5GHz: 4 dBi Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm WLAN feature Band Steering Yes WDS/Mesh Yes Fast roaming Yes DCS Yes Load balancing No Security Encryption WPA Personal WPA2 Personal WPA3 Personal Authentication No Access management MAC filtering Rogue AP detection Networking IPv6 Yes VLANs Yes WMM Yes U-APSD Yes Management Operating mode Nebula Cloud managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration Zyxel Wireless Optimizer WiFi AP planning Web UI/CLI Yes SNMP NO Physical Specifications Item Dimensions (WxDxH)(mm/in.) 140 x 140 x 37.5/5.51 x 5.51 x 1.48 Weight (g/lb.) 290/0.64 Packing Dimensions (WxDxH)(mm/in.) 240 x 155 x 60/9.45 x 6.10 x 2.36 Weight (g/lb.) 600/1.32 Included accessories Power adapter Mount plate Mounting screws MTBF (hr) 1,010,980 Physical Interfaces Ethernet port 1 x 10/100/1000M LAN Power Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A PoE (802.3at): power draw 16 W Environmental Specifications Operating Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) Certifications Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893; LP0002 EN 60601-1-2 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 BSMI CNS13438 Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1

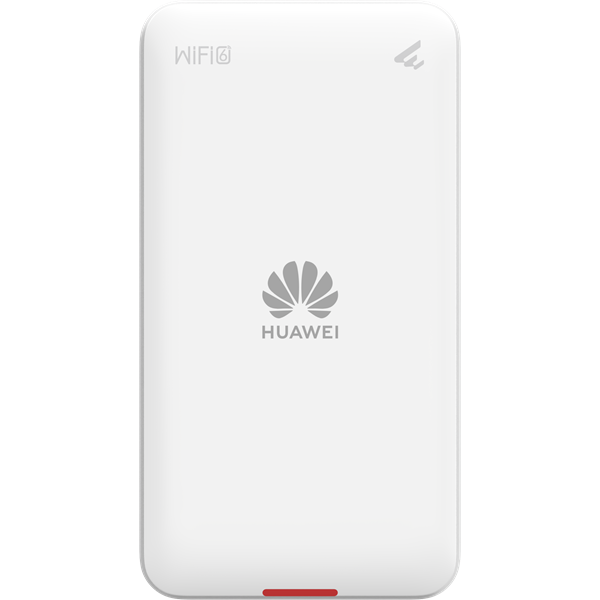

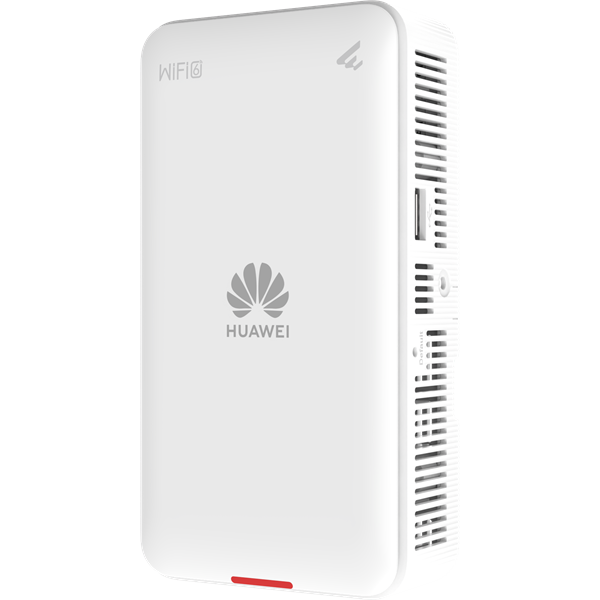

Integrated fixed device Y First supported version V200R021C01 Installation Type Desk,Wall,Ceiling,Junction Box Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) Weight without packaging [kg(lb)] 0.320 kg (0.705 lb) Weight with packaging [kg(lb)] 0.542 kg (1.195 lb) CPU 2-core, 1.0 GHz Memory DDR3L: 512 MB Storage NAND Flash 256 MB Console port BLE console Maximum power consumption [W] 12 Maximum heat dissipation [BTU/hour] 41 Power supply mode DC adapter,PoE Rated input voltage [V] 12 V Input voltage range [V] 12±10% PoE: 802.3at/af Service port surge protection [kV] PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground USB USB 2.0 (supporting 5 W power supply) BLE BLE5.0 Radio number 2 Operating frequency band 2.4GHz,5GHz MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax Radio interface Built-in smart antennas Antenna gain 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm 3G/LTE filte (ACC) Not supported MTBF [year] 69.7 MTTR [hour] 0.5 Frequency stability [ppm] +/-20 802.3at power supply description No function is limited. 802.3af power supply description The USB function is unavailable. DC power supply description No function is limited.

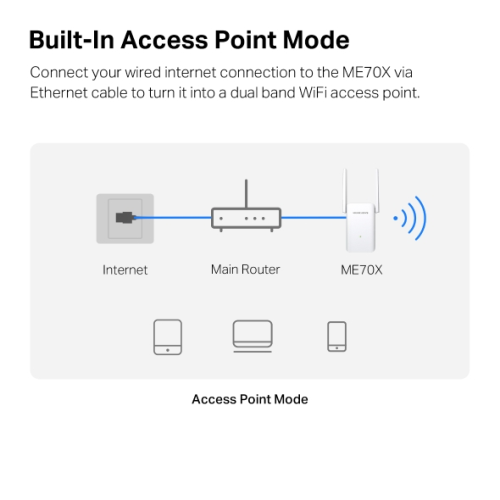

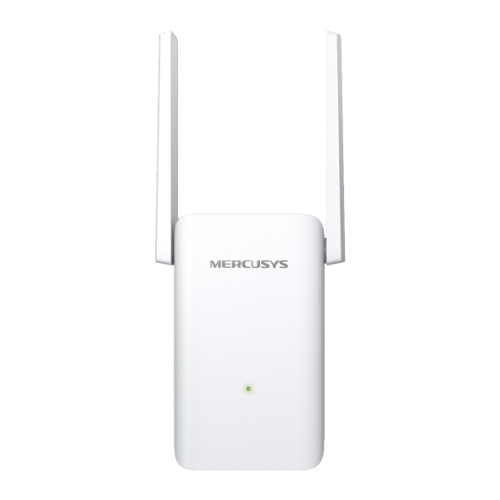

AX1800 Wi-Fi Range Extender SPEED: 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz SPEC: 2× Fixed External Antennas, 1 × Gigabit Port, Wall Plugged, 1024 QAM, OFDMA FEATURE: MERCUSYS APP, WPS/Reset Button, Signal Indicator, Range Extender/Access Point mode, Ada

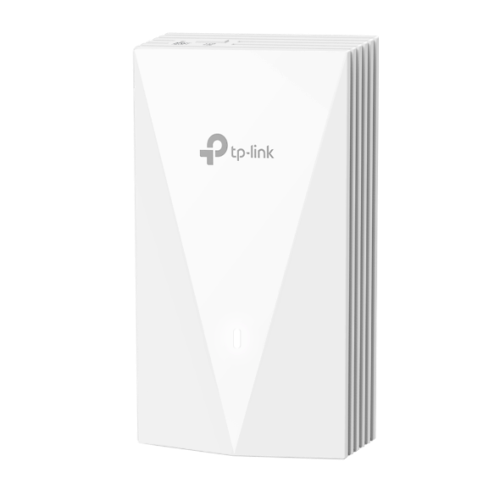

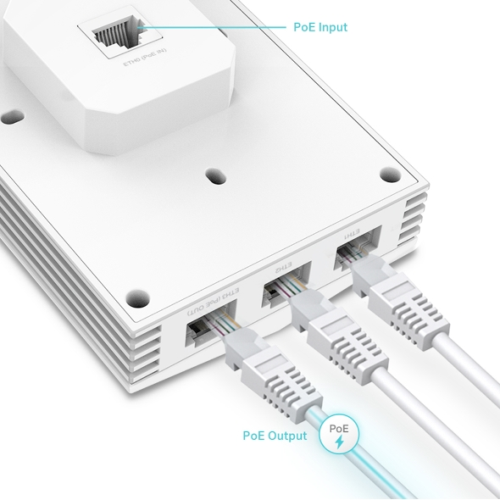

AX3000 Wall-Plate Dual-Band Wi-Fi 6 Access Point PORT: Uplink: 1× Gigabit RJ45 Port, Downlink: 3× Gigabit RJ45 Port SPEED:574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz FEATURE: Compatible with EU & US Standard Junction Box, 802.3at/af PoE, PoE Passthrough,

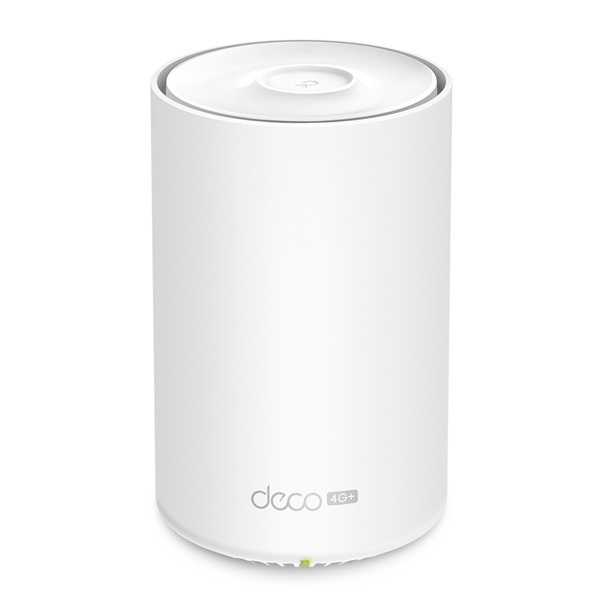

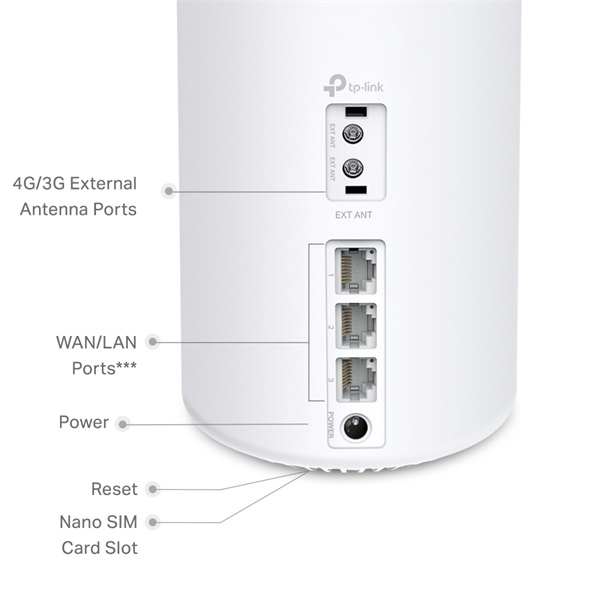

VEZETÉK NÉLKÜLI Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AX1500 5 GHz: 1201Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 1-2 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity High Dual-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices Working Modes 3G/4G, Router, Access Point BIZTONSÁG Network Security SPI Firewall Access Control Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network WiFi Encryption WPA-Personal WPA2-Personal WPA3-Personal HARDWARE Ethernet Ports 3× Gigabit Ports Supports WAN/LAN auto-sensing Buttons RESET Button Ports and Connections 2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters) SIM Card Format: Nano-SIM Compatibility 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz) SOFTWARE Protocols IPv4 IPv6 Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Report WAN Types Dynamic IP Static IP PPPoE L2TP PPTP Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link Management Deco App TEST DATA WiFi Transmission Power CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) PHYSICAL Dimensions (W×D×H) 4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm) EGYÉB JELLEMZŐK Tanúsítványok CE, RoHS Csomagolás tartalma 1-pack 1 Deco X10-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 2 SMB to SMA Adapters Quick Installation Guide Környezet Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH

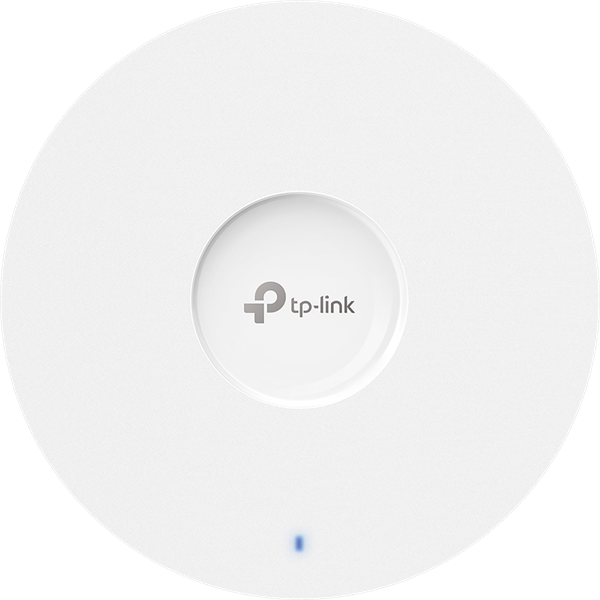

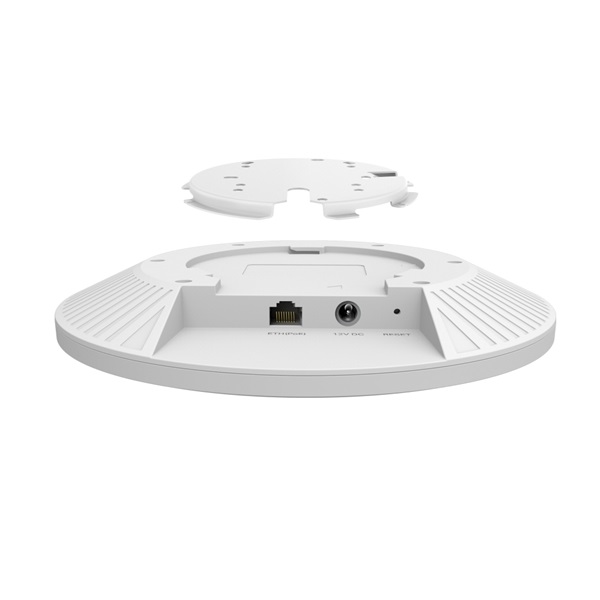

HARDVER JELLEMZŐK Csatlakozások 1× 2.5 Gigabit PoE+ Port Gomb Reset Hálózati tápegység • 802.3at PoE• 12 V / 2 A DCNote:Power adapter is not included. Energiafelvétel • EU: 20.43W• US: 23.69W Méretek (Sz x Mé x Ma) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna típusa Internal Omni• 2.4 GHz: 4× 4 dBi• 5 GHz: 4× 5 dBi Felszerelés Ceiling /Wall Mounting (Kits included) VEZETÉK NÉLKÜLI JELLEMZŐK Concurrent Clients 512** Wi-Fi sztenderd IEEE 802.11ax/ac/n/g/b/a Frekvencia 2.4 GHz and 5 GHz Adatátvitel • 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 1148 Mbps Vezeték nélküli funkciók • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO• HE160 (160 MHz Bandwidth)‡• Seamless Roaming §• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client Vezeték nélküli biztonság • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Átviteli teljesítmény • CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<28 dBm(5 GHz, band3, EIRP)• FCC: <26 dBm (2.4 GHz)<26 dBm (5 GHz) VEZÉRLÉS Omada App Yes Centralized Management • Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller• Omada Cloud-Based Controller Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Riasztás e-mailben Yes LED ki/bekapcsolás Yes Mac-cím alapú vezérlés Yes SNMP v1, v2c, v3 Syslog helyi/távoli Local/Remote Syslog SSH Yes Webes felelületű vezérlés HTTP/HTTPS L3 Management Yes Multi-site vezérlés Yes Management VLAN Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. EGYÉB JELLEMZŐK Tanúsítványok CE,FCC,RoHS Csomagolás tartalma • EAP683 LR• Ceiling/Wall Mounting Kits• Installation Guide Rendszerkövetelmény Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Környezet • Operating Temperature: 0–40 ? (32–104 ?)• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

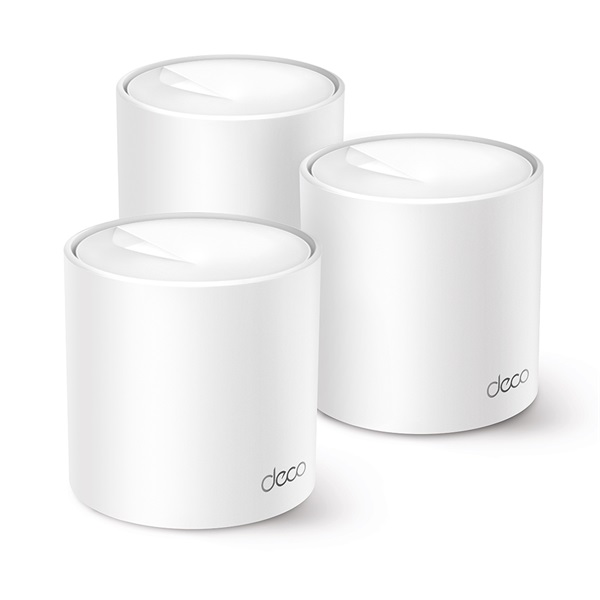

VEZETÉK NÉLKÜLI Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 1-2 Bedroom Houses (1-pack) 2-4 Bedroom Houses (2-pack) 3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity High Dual-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices Working Modes Router Mode Access Point Mode BIZTONSÁG Network Security SPI Firewall Access Control Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network WiFi Encryption WPA-Personal WPA2-Personal WPA3-Personal HARDWARE Ethernet Ports 2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing Buttons Reset Button SOFTWARE Protocols IPv4 IPv6 Parental Controls Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link Management Deco App TEST DATA WiFi Transmission Power CE: <20 dBm (2.4 GHz) <30 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) PHYSICAL Dimensions (W×D×H) 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) Package Contents Deco X10 (3-pack) 3 Deco X10 Units 1 RJ45 Ethernet Cable 3 Power Adapters Quick Installation Guide Deco X10 (2-pack) 2 Deco X10 Units 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation Guide Deco X10 (1-pack) 1 Deco X10 Unit 1 RJ45 Ethernet Cable 1 Power Adapter Quick Installation Guide EGYÉB JELLEMZŐK Rendszerkövetelmény Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. Tanúsítványok CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI Környezet Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~60? (-40? ~140?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Csatlakozó LAN, Adatátviteli frekvencia 5GHz, Antenna max. nyeresége 13dBi, Kültéri

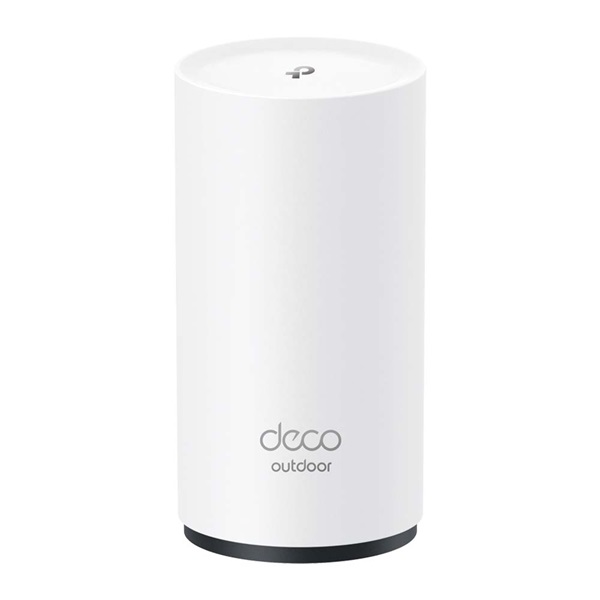

3000 Mbps WiFi sebesség – Élvezze kedvenc sorozatait 4K-ban, akár 3000 Mbps kombinált sebességgel (574 Mbps 2,4 GHz-en és 2402 Mbps 5 GHz-en) † Többféle rögzítési lehetőség – asztali, fali és oszlop Kültéri eszköz – IP65 por- és vízállóság Tápellátás Etherneten keresztül – Adatkapcsolatot és elektromos tápellátást biztosít egyetlen kábellel Teljes Gigabit Ethernet – 3× Gigabit WAN/LAN Ethernet port stabil és gyors internet-hozzáférést biztosít nagy sebességgel. ? Deco – Minden más Deco modellel kompatibilis, bármelyik meglévő Deco hálózat bővíthető vele. TP-Link HomeShield – Átfogó hálózati védelmet, robusztus szülői felügyeletet és valós idejű monitorozást biztosít
