LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, 4xUSB, 2xUSB3.2, VGA, HDMI, PS2:1 db, 7.1, Gigabit, 1xUltra M.2, Micro-ATX

AM5, AMD B650, 4xDDR5, Max:4800MHz, Max:128GB, 2xPCIE16, 1xPCIE1, 6xSATA3, RAID, 2xUSB, 7xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, WiFi, Bluetooth, 3xM.2, ATX

AM5, AMD B650, 4xDDR5, Max:5200MHz, Max:128GB, 3xPCIE16, 4xSATA3, RAID, 4xUSB, 7xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, 7.1, 2.5Gb/s LAN, 3xM.2, ATX

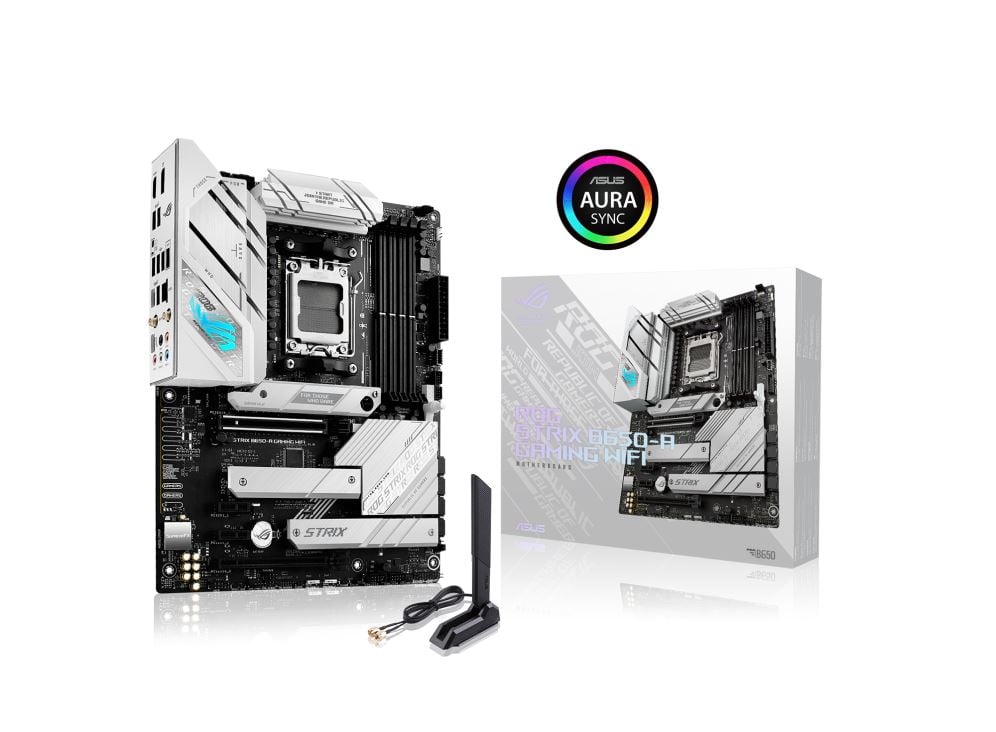

AMD B650 AM5 ATX alaplap 12+ 2 tápfázissal, DDR5 memóriával, PCIe 5.0 NVMe SSD támogatással, PCIe 4.0 x16 SafeSlot Q-Release kiadással, USB 3.2 Gen 2x2 Type-C I/O port hátul, USB 3.2 Gen 2 Type-C előlapi csatlakozóval, WiFi 6E és Aura Sync RGB megvilágítással®®®® AMD foglalat AM5: AMD Ryzen-kompatibilis™ 7000-es sorozatú asztali processzorok Robusztus tápellátási megoldás: 12+ 2 tápfázis 8+4 tűs ProCool tápcsatlakozóval, nagy teljesítményű fémötvözet tekercsek és tartós kondenzátorok a többmagos processzorok támogatásához Optimalizált termikus kialakítás: masszív VRM hűtőbordák stratégiailag vágott légáramlási csatornákkal és nagy vezetőképességű hővezető alátétekkel Következő generációs M.2 támogatás: Egy PCIe 5.0 M.2 bővítőhely és két PCIe 4.0 M.2 bővítőhely, mindegyik hűtőbordával a teljesítmény maximalizálása érdekében® Fejlett csatlakoztathatóság: Egy USB 3.2 Gen 2x2 Type-C és nyolc további hátsó USB port, USB 3.2 Gen 2 Type-C előlapi csatlakozó, HDMI 2.1, DisplayPort®®®™ 1.4 és egy PCIe 4.0 x16 SafeSlot Erőteljes hálózatkezelés: Alaplapi WiFi 6E (802.11ax), Bluetooth 5.2 és Intel 2.5G Ethernet ASUS LANGuarddal®® Intelligens vezérlés: Exkluzív ASUS kétirányú AI zajszűrés és AI hálózatkezelés Magával ragadó játékhangzás: ALC4080 Savitech SV3H712 erősítővel, DTS Sound Unbound és Sonic Studio III mellett® Páratlan személyre szabás: Exkluzív ASUS Aura Sync RGB megvilágítás, amely egy RGB csatlakozót és három megcímezhető 2. generációs RGB csatlakozót tartalmaz DIY-barát kialakítás: PCIe bővítőhely Q-Release, M.2 Q-Latch, előre összeállított I/O pajzs és BIOS FlashBack®™-rügy Intuitív szoftver: könnyen használható UEFI BIOS műszerfal, Armoury Crate RGB és eszközkezelés, valamint 60 napos AIDA64 Extreme próbaverzió

LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, 4xUSB, 2xUSB3.2, VGA, HDMI, DisplayPort, PS2:1 db, 7.1, Gigabit, 1xM.2, Micro-ATX

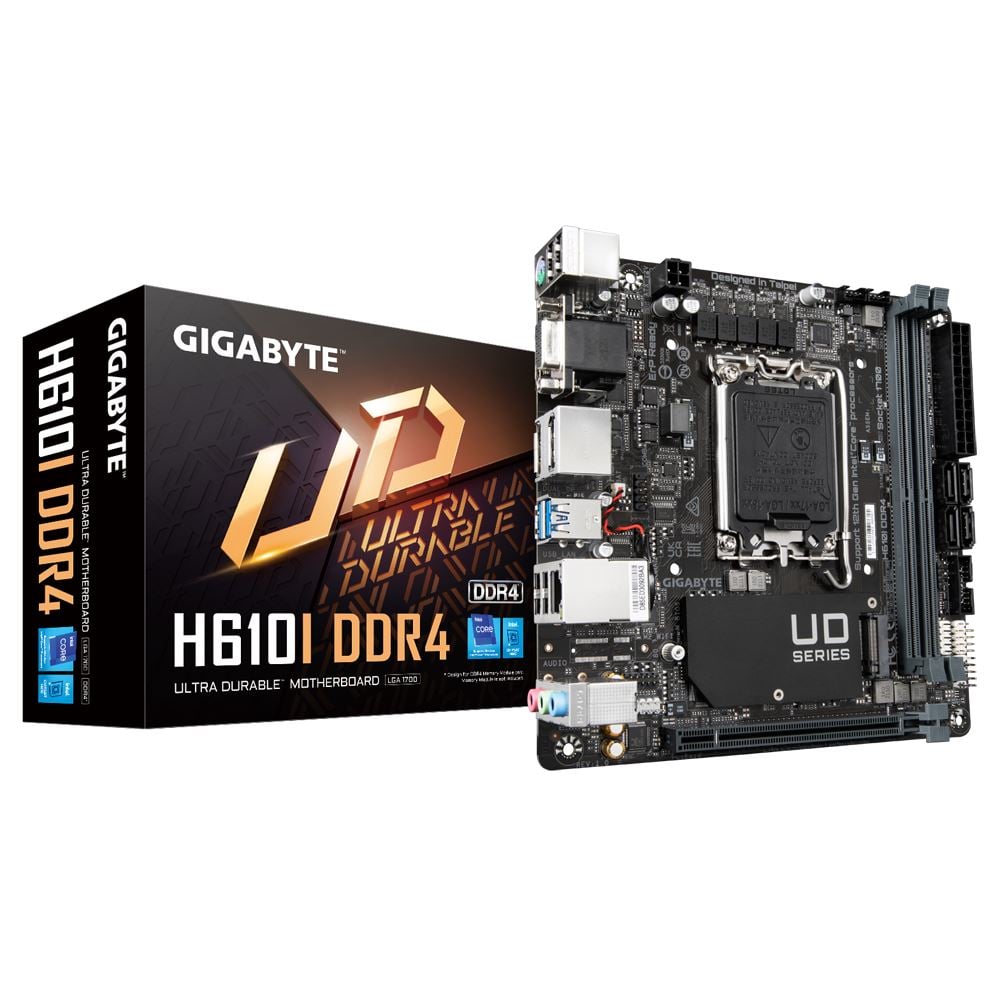

LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 4xSATA3, 4xUSB, 2xUSB3.2, VGA, HDMI, DisplayPort, PS2:1 db, 7.1, Gigabit, 1xM.2, Mini-ITX

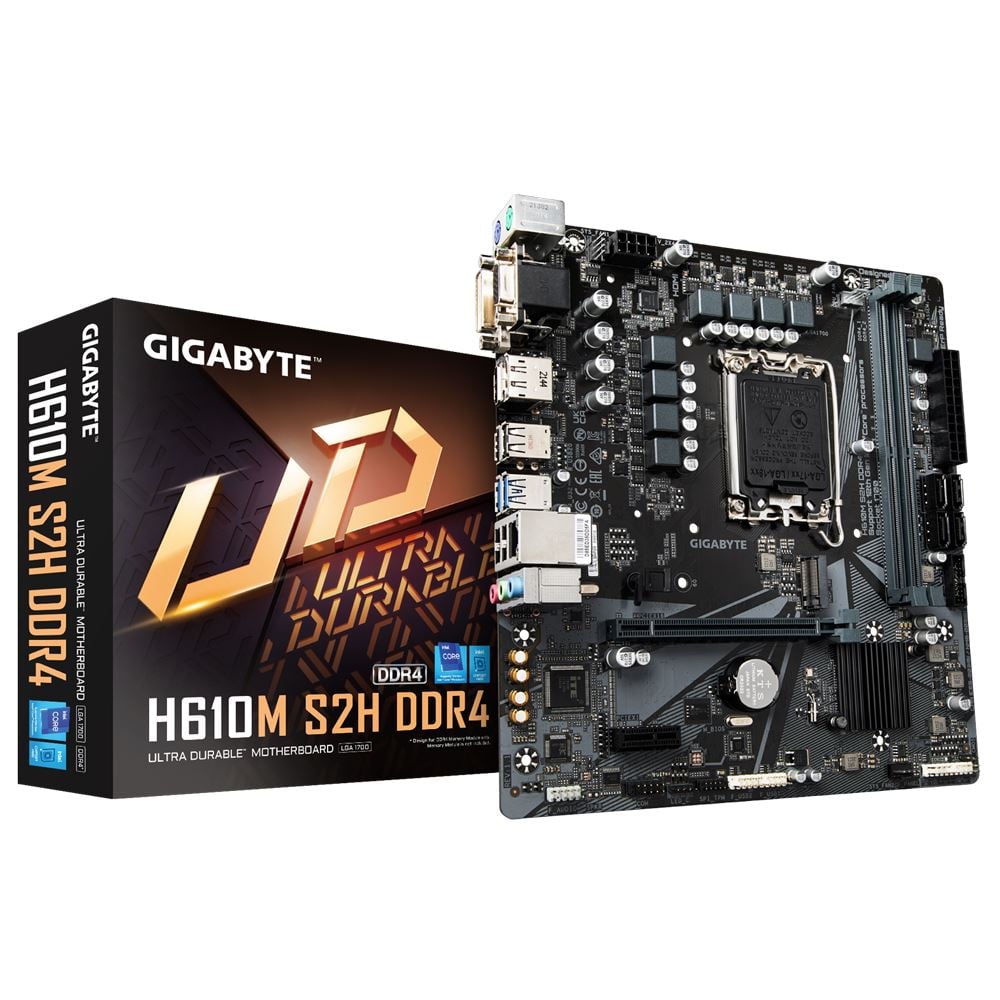

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. Chipset Intel® H610 Express Chipset Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. LAN Intel® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) Storage Interface Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors USB Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

Intel H610, LGA1700, 2x DDR4 max. 64GB, 1x PCIe4.0x16, 2x PCIe3.0x1, 4x SATA3, 1x M.2, 5x USB 2.0, 4x USB 3.2 Gen1, 1x Gigabit, DSUB, HDMI, DP

LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, 4xUSB, 2xUSB3.2, DVI, VGA, HDMI, DisplayPort, PS2:2 db, 7.1, Gigabit, 3xM.2, ATX

AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 3xPCIE1, 6xSATA3, RAID, 2xUSB, 5xUSB3.2, 1xUSB3.2C, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, WiFi, Bluetooth, 2xM.2, ATX

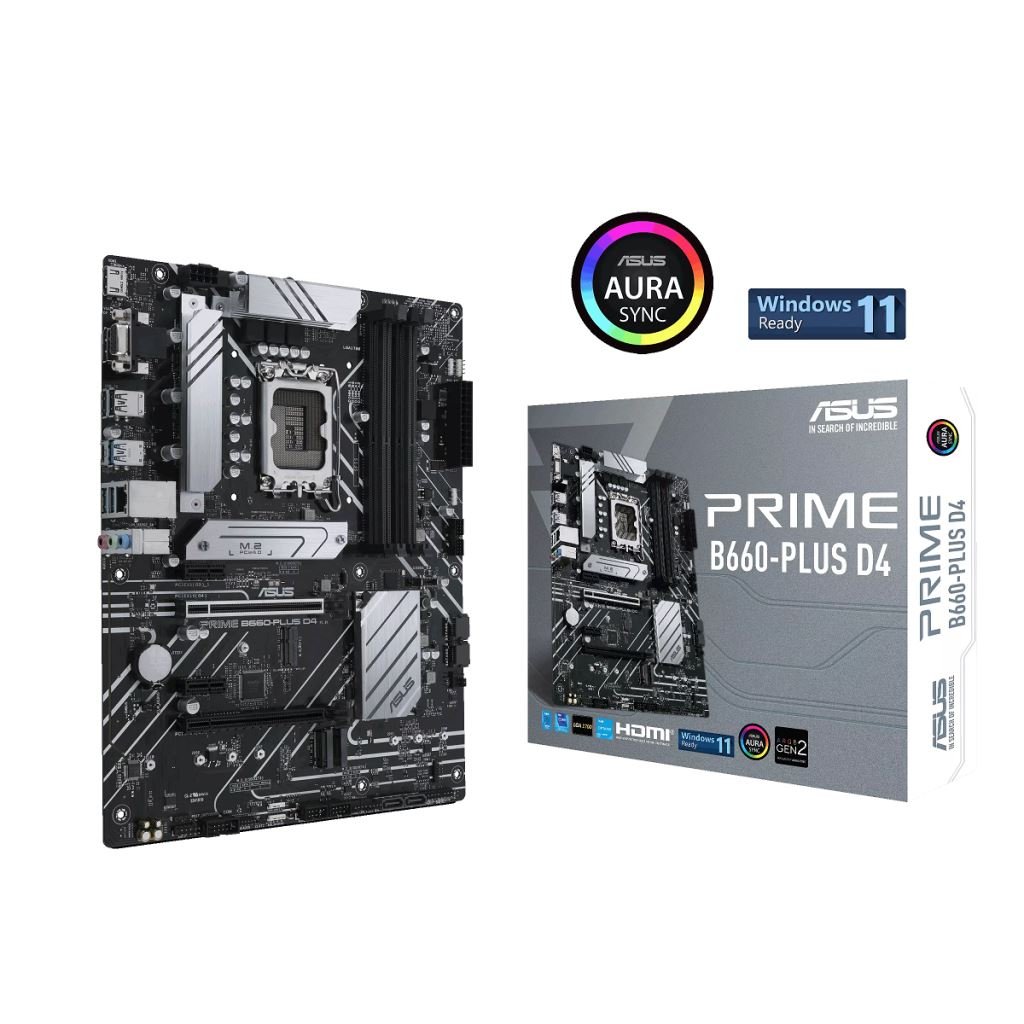

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.   Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset B660 Intel® B660 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*" Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.   4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*" Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution.   1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot   Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot Storage Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.   Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH Ethernet ASUS LANGuard 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. USB Rear USB (Total 6 ports)  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A)   Front USB:Total 7 ports Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports   Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.   Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks   1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header   Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers   ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode   ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide   Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x User guide Form Factor ATX 30.5cm x 24.4cm

  CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® B660 Memory   4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).     Graphics   1 x HDMI® port** 1 x USB Type-C port supports DisplayPort output*** 1 x DP IN that will have output through USB Type-C port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. **** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal.     Expansion Slots Intel® 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot** * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled. Storage   Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)*** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.     Ethernet 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard Wireless & Bluetooth   M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately.     USB Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio   Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.     Back Panel I/O Ports 1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 1 x Intel® 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors   Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header     Special Features ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility EPU DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb   Manageability WOL by PME, PXE   Accessories   Cables 1 x DisplayPort cable 2 x SATA 6Gb/s cables Miscellaneous 3 x M.2 Rubber Packages 1 x Q-connector Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide     Operating System Windows® 11 64-bit, Windows® 10 64-bit   Form Factor   ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

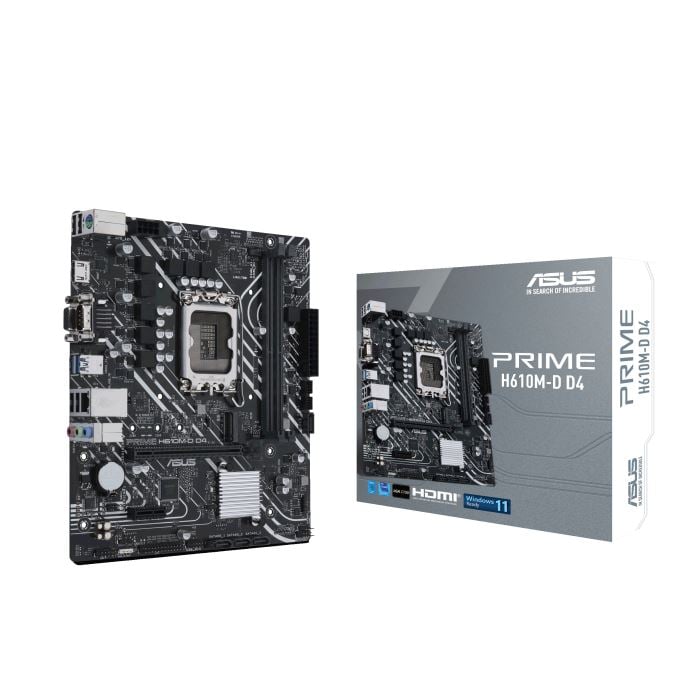

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H610 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x D-Sub port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used. Ethernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors   Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User Guide Operating System Windows® 11 64-bit, Windows® 10 64-bit Form Factor mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*   Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Memory 2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. Graphics 1 x D-Sub port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI® 2.1. Expansion Slots Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel®B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. Ethernet 1 x Realtek 1Gb Ethernet USB 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)   1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Installation Media 1 x Support DVD Documentation 1 x User manual Operating System Windows® 11 64-bit, Windows® 10 64-bit Windows® 11 64-bit, Windows® 10 64-bit Form Factor microATX 24.4cm x 21.1cm

LGA1700, Intel H610, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, 4xUSB, 2xUSB3.2, VGA, HDMI, COM, PS2:1 db, 7.1, Gigabit, 1xM.2, Micro-ATX

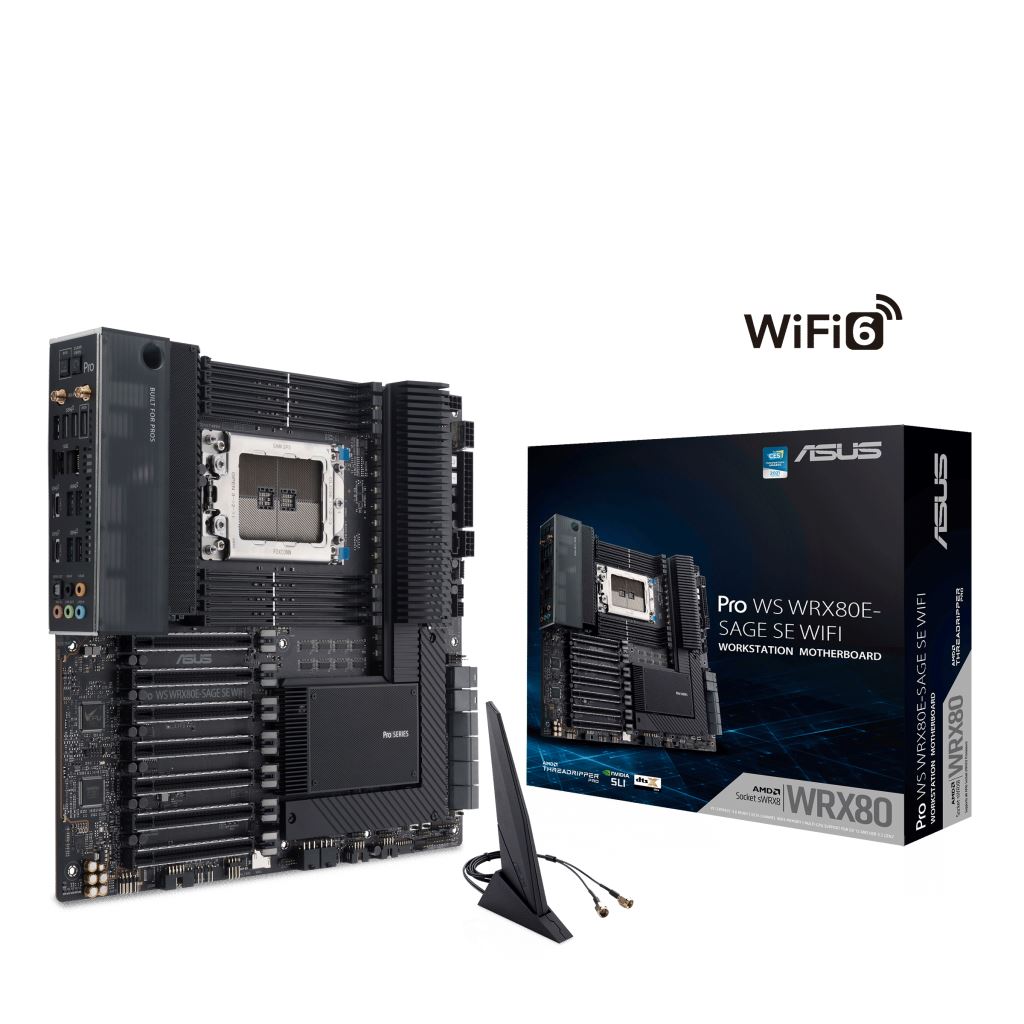

ASUS PRO WS AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages

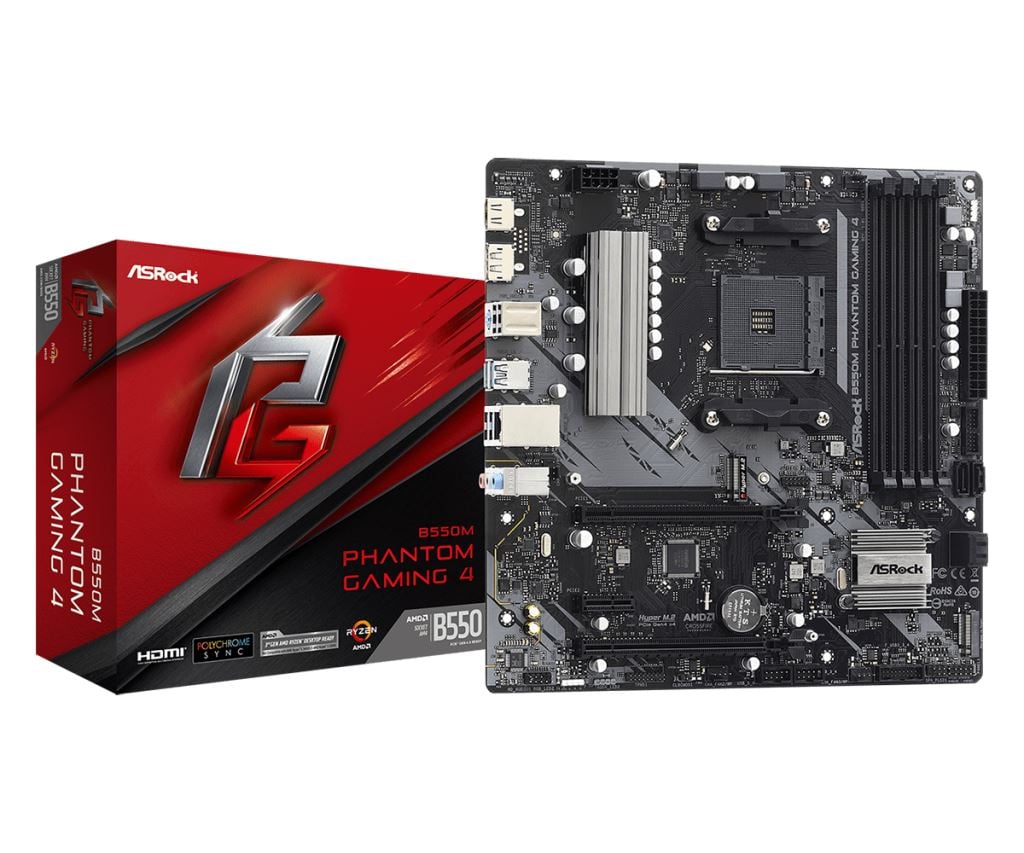

AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 2xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 4xUSB3.2, HDMI, DisplayPort, PS2:1 db, 7.1, Gigabit, 1xM.2, 1xHyper M.2, Micro-ATX

AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 3xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 5xUSB3.2, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, 2xM.2, ATX

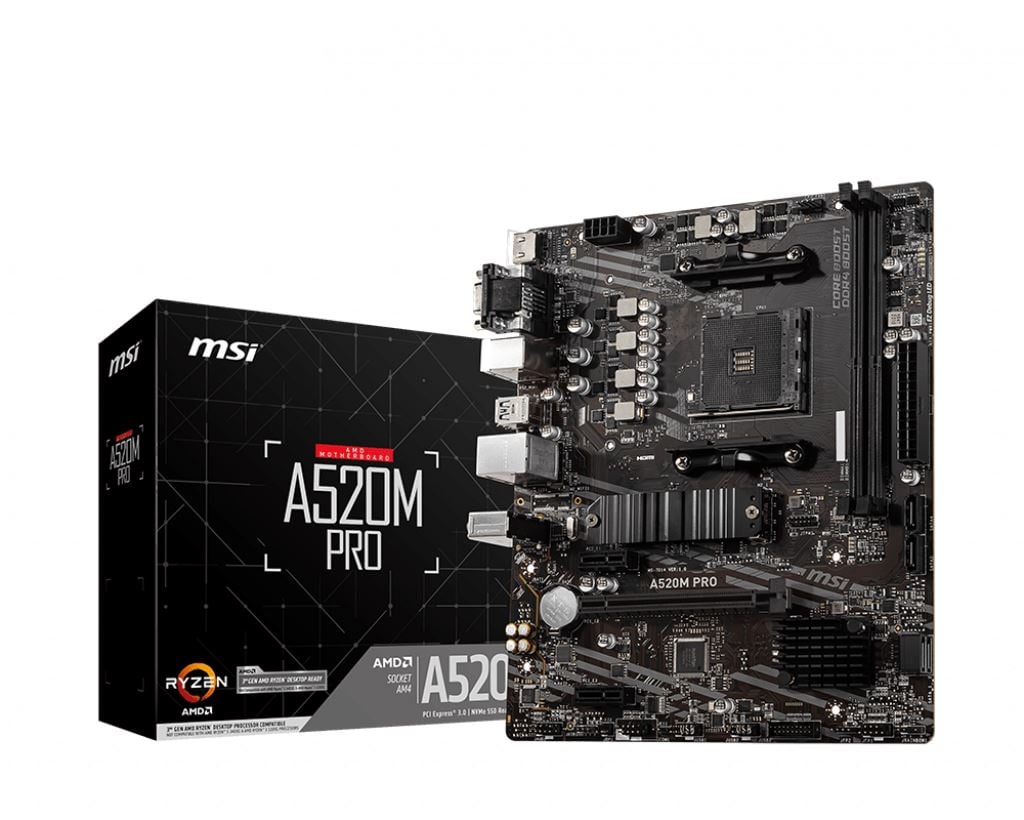

AM4, AMD A520, 2xDDR4, Max:3200MHz, Max:64GB, 1xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 4xUSB3.2, VGA, HDMI, PS2:1 db, 7.1, Gigabit, 1xUltra M.2, Micro-ATX

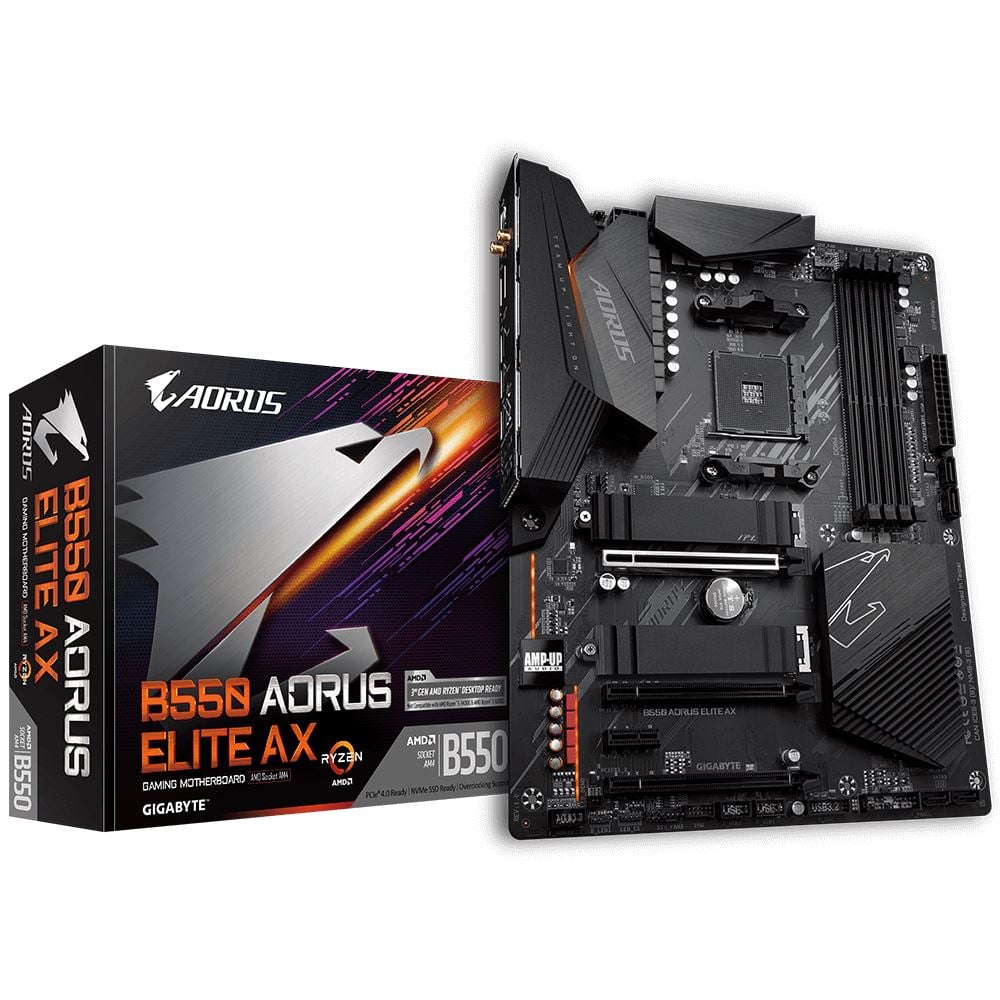

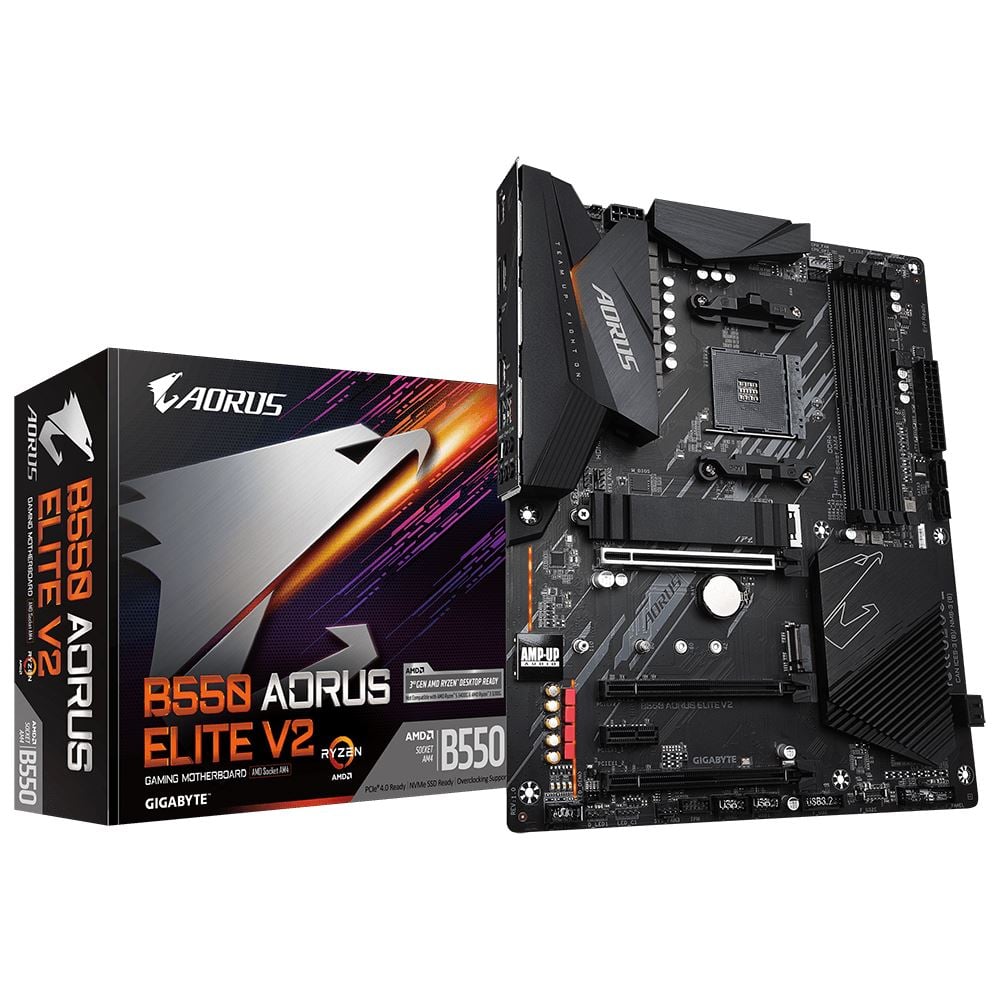

Tulajdonságok: AMD StoreMI technológiaA GIGABYTE B550 alaplapok maximálisan kihasználják PC-d képességeit az AMD StoreMI technológiával. A StoreMI felgyorsítja a hagyományos adattárolókat és lerövidíti az indulási időt, vagyis jelentősen javítja a felhasználói élményt. Ez az egyszerűen használható szoftver egyetlen meghajtóban egyesíti az SSD-k gyorsaságát a hagyományos HDD-k óriási kapacitásával. Javítja az írási/olvasási tempót SSD-szintre emelve ezeket, a sebességet pedig kiváló forint/Gigabyte mutatóval egészíti ki, hogy akár egy hétköznapi, átlagos konfiguráció is kiválóan teljesítő PC-vé avanzsáljon. 5+3-Fázisú Tisztán Digitális VRM Megoldás Low RDS(on) MOSFET-ekkelA GIGABYTE AORUS sorozatú alaplapok 5+3-fázisú tisztán digitális PWM + Low RDS(on) MOSFET dizájnt használnak, amely hihetetlen pontossággal képes a 3. Generációs AMD Ryzen™ CPU-k számára biztosítani a szükséges tápfeszültségeket. Ez az alaplap legnagyobb és egyben legérzékenyebb fogyasztója számára tökéletes tápellátást biztosít, emellett jobb rendszerteljesítményt és kiváló hardveres skálázhatóságot kínál. Dupla NVMe PCIe 4.0*/3.0 M.2 FoglalatAz NVMe PCIe 4.0*/3.0 x4 és PCIe 3.0 x2 M.2 alaplapi foglalatokkal a GIGABYTE Alaplapok elhozzák a tökéletes, kompromisszummentes M.2 SSD-kezelést, legyen szó akár NVMe, akár SATA módról. Az akár 64 Gb/s sávszélesség és a dupla M.2 foglalat ideális tárolási megoldás kiépítését teszi lehetővé akár RAID módok aktiválásával is. * A tényleges támogatás CPU-tól is függhet. Nagysebességű gigabites LAN automatikus sávszélesség-elosztássalA Realtek 8118 LAN egy nagy teljesítményű és barátságos hálózati chip automatikus sávszélesség-elosztással kifejezetten játékosok igényeihez szabva, így biztosítja a játék vagy alkalmazás legmagasabb hálózati prioritását. A felhasználók a legátfogóbb szolgáltatásokat és a leggyorsabb, legegyszerűbb internetes élményt kapják. HDMI 2.1 port 4K / 60P / 21:9 / HDCP 2.3 TámogatássalA HDMI 2.1 visszafelé kompatibilis a HDMI 2.0/ 1.4-gyel és 48 Gb/s sávszélességet kínál - ez duplája az előző generációénak. Ez a szabvány lehetővé teszi a felhasználók számára, hogy több video-jelfolyamot továbbítsanak egyszerre, vagy akár natív 21:9-es képarányt használjanak (így készül a legtöbb film) teljes HDR és HDCP 2.3 támogatás mellett, hogy a lehető legjobb vizuális élményben lehessen részük. Smart Fan 5A Smart Fan 5 segítségével a felhasználók biztosíthatják a stabilitást és a csúcsteljesítményt alacsony hőmérsékletek mellett. A Smart Fan 5 minden egyes ventilátort külön-külön képes kezelni, a kiegészítő hőérzékelőket pedig egyedi helyekre rögzíthetjük, hogy ezáltal precíz és személyre, pontosabban gépre szabott hűtést állíthassunk be. A Smart Fan 5 emellett hibrid csatlakozókat kínál és kezeli a PWM, valamint a hagyományos ventilátorokat is, sőt, a vízpumpákhoz is ideális. RGB Fusion 2.0A B550 alaplapokon minden eddiginél jobb a Címezhető LED-ekkel kompatibilis RGB Fusion 2.0 világítási rendszer. Az RGB Fusion 2.0 lehetővé teszi a felhasználók számára, hogy vezéreljék az alaplapi és a külső RGB/Címezhető LED-szalagokat* kényelmesen, PC-jükről. Már alapértelmezetten számos színhatással és világítási effekttel szereltük fel az RGB Fusion 2.0-t, amely mostantól Címezhető LED-támogatást is kapott. A külső Címezhető LED-szalagoknál minden egyes LED digitálisan, egyesével címezhető, így a felhasználók eddig soha nem látott effektekkel és világítási hatásokkal dobhatják fel gépeiket. A B550 alaplapok támogatják az 5V és 12V Címezhető LED-szalagokat és akár 300 LED-ből álló mátrixokat. Az RGB Fusion 2.0 világítás Címezhető LED-támogatással új effekteket és többféle sebességbeállítást támogat. Később újabb effektek is várhatók még. * A külső RGB LED-szalagok és címezhető RGB LED-szalagok nem járnak vásárláskor az alaplaphoz. Q-Flash PlusA GIGABYTE Q-Flash Plusszal többé nem szükséges CPU-t, memóriát vagy grafikus kártyát építened az alaplapba, sőt, még a BIOS menüjébe sem kell belépned, hogy frissítsd a BIOS-t. Csak töltsd le a hivatalos weboldalról az új BIOS-fájlt (nevezd át gigabyte.bin-re) egy USB kulcson, majd nyomd meg a dedikált Q-Flash Plus gombot, hogy automatikusan frissüljön a BIOS-od! A legújabb anti-kén védelemA levegőben lévő kénvegyületek behatolhatnak az apró felületszerelt ellenállásokba, ezzel pedig kémiai változást eredményezhetnek, hogy az ellenállás szakadásként, vagy rövidzárként viselkedjen. Ha ezek közül bármelyik előfordul, akkor az alaplap nem fog elindulni. Az ellenállások felszerelése egy kénmentes eljárással történik, így a GIGABYTE teljesen új jelentést ad az Ultra Durable (Ultra-strapabíró) kifejezésnek.

AM4, AMD B550, 4xDDR4, Max:3200MHz, Max:128GB, 3xPCIE16, 1xPCIE1, 4xSATA3, RAID, 2xUSB, 6xUSB3.2, HDMI, DisplayPort, 7.1, SPDIF optikai kimenet, 2.5Gb/s LAN, WiFi, Bluetooth, 2xM.2, ATX
